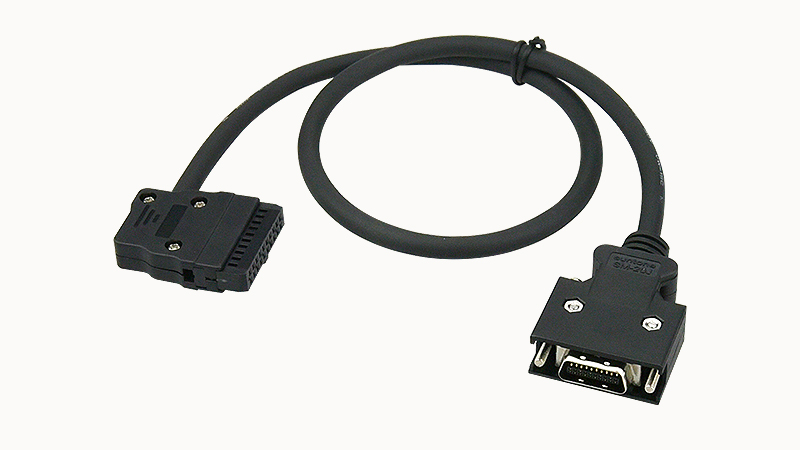

MDR cable-DX220-3DS-500-00A(H)

Specifications

Connection Volume

1

Single Stranded Wire Material

Tinned copper

Gasoline Resistance

≤246Ω/KM

Connection Name

On-site side

Maximum Current Carrying Capacity Of Each Path

0.7A

Connection Method

IDC/MIL female connector

Single Wire Number Of Twisted Wires

20

Ambient Temperature Operation

-20 °C ... 80 °C

Cable Outer Diameter

6.1mm

Number Of Digits

20

Outer Sheathcolor

black

Flame Retardant

ULVW-1

Oil Resistance

Oil resistant

Kablo Uzunluğu

0.5米

Outer Sheath Material

PVC

Packing Unit

1

Connection Meets Standards

UL758

Products Weight Without Packaging

50

Maximum Allowable Working Voltage

30VDC

Single Strand Crosssectional Area

0.08mm²

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Shield

Yes

Spacing

1.27mm

Single Strand Cross Section Awg

28

Exit Angle

180°
