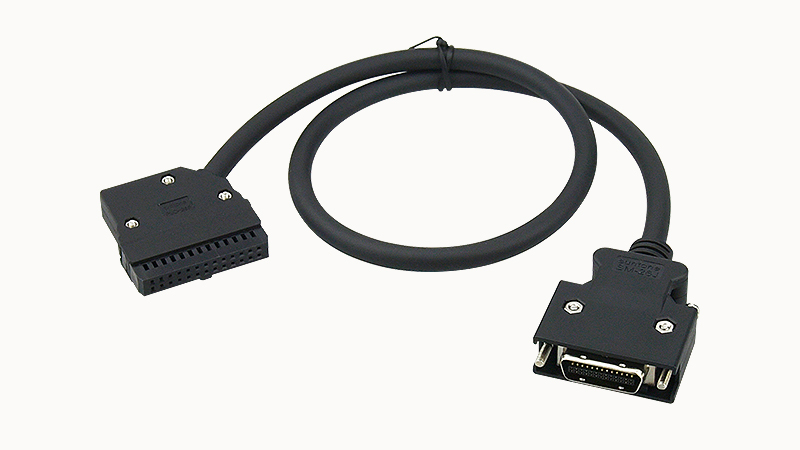

MDR cable-DX220-2DS-500-00A(H)

Specifications

Single Strand Crosssectional Area

0.08mm²

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Maximum Allowable Working Voltage

30VDC

Products Weight Without Packaging

50

Connection Meets Standards

UL758

Exit Angle

180°

Shield

Yes

Spacing

1.27mm

Single Strand Cross Section Awg

28

Kablo Uzunluğu

0.5米

Oil Resistance

Oil resistant

Flame Retardant

ULVW-1

Packing Unit

1

Outer Sheath Material

PVC

Ambient Temperature Operation

-20 °C ... 80 °C

Single Wire Number Of Twisted Wires

26

Number Of Digits

26

Outer Sheathcolor

black

Cable Outer Diameter

6.5mm

Connection Name

On-site side

Gasoline Resistance

≤246Ω/KM

Connection Volume

1

Single Stranded Wire Material

Tinned copper

Connection Method

IDC/MIL female connector

Maximum Current Carrying Capacity Of Each Path

0.7A
