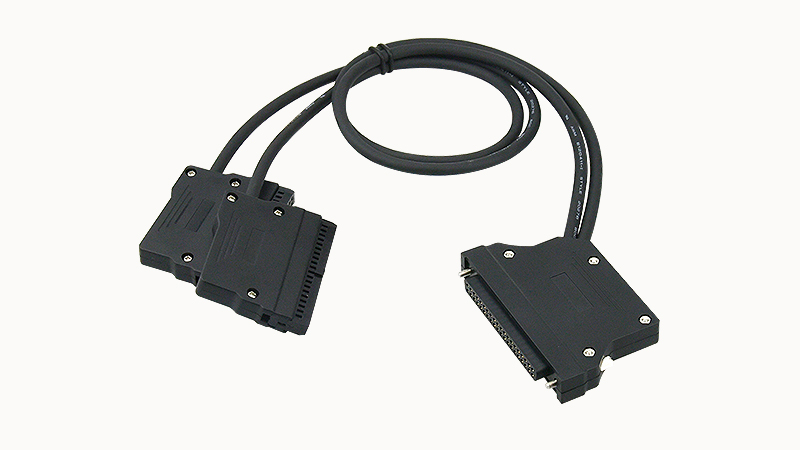

FCN cable-DX215-10S-500-00A(H)

Specifications

Connection Name

On-site side

Kablo Uzunluğu

0.5米

Oil Resistance

Oil resistant

Shield

Yes

Gasoline Resistance

≤246Ω/KM

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Products Weight Without Packaging

50

Outer Sheathcolor

black

Exit Angle

90°

Maximum Allowable Working Voltage

30VDC

Single Wire Number Of Twisted Wires

40

Packing Unit

1

Spacing

2.54mm

Single Strand Cross Section Awg

28

Maximum Current Carrying Capacity Of Each Path

0.7A

Single Strand Crosssectional Area

0.08mm²

Cable Outer Diameter

6.5mm

Connection Meets Standards

UL758

Outer Sheath Material

PVC

Ambient Temperature Operation

-20 °C ... 80 °C

Connection Method

IDC/MIL female connector

Number Of Digits

40

Flame Retardant

ULVW-1

Single Stranded Wire Material

Tinned copper

Connection Volume

1
