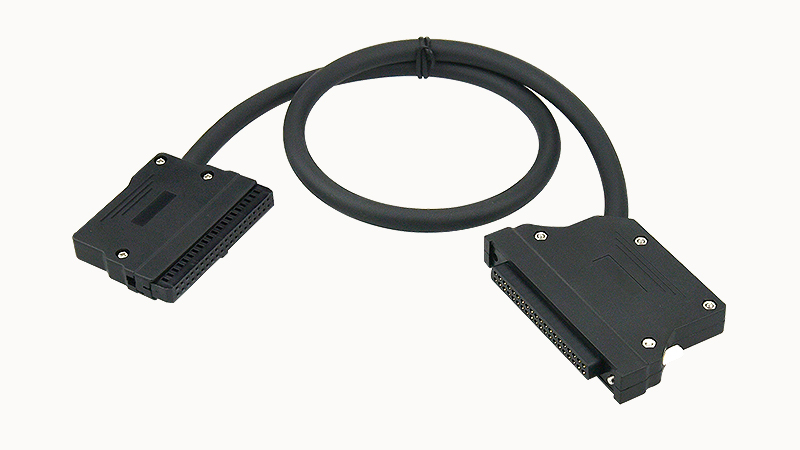

FCN cable-DX212-6S-500-00A(H)

Specifications

Single Stranded Wire Material

Tinned copper

Flame Retardant

ULVW-1

Connection Volume

1

Connection Meets Standards

UL758

Cable Outer Diameter

6.5mm

Outer Sheath Material

PVC

Ambient Temperature Operation

-20 °C ... 80 °C

Connection Method

IDC/MIL female connector

Number Of Digits

40

Spacing

2.54mm

Packing Unit

1

Maximum Current Carrying Capacity Of Each Path

0.7A

Single Strand Cross Section Awg

28

Single Strand Crosssectional Area

0.08mm²

Kablo Uzunluğu

0.5米

Connection Name

On-site side

Oil Resistance

Oil resistant

Shield

Yes

Gasoline Resistance

≤246Ω/KM

Products Weight Without Packaging

50

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Single Wire Number Of Twisted Wires

40

Outer Sheathcolor

black

Exit Angle

90°

Maximum Allowable Working Voltage

30VDC
