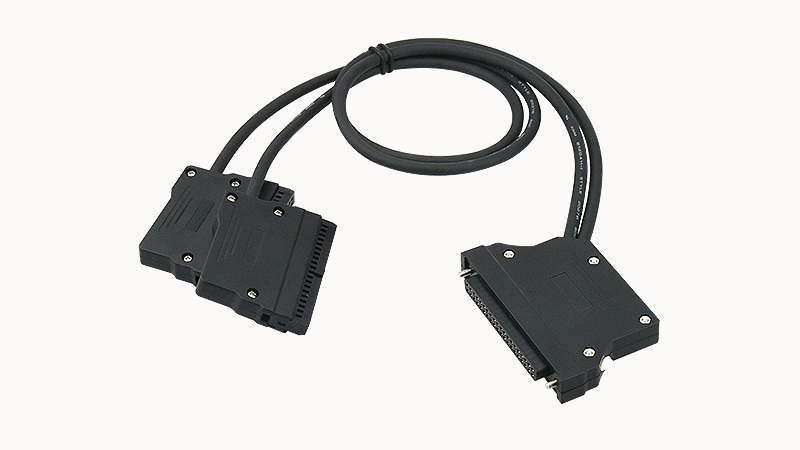

FCN cable-DX212-3S-500-00A(H)

Specifications

Connection Method

IDC/MIL female connector

Number Of Digits

40

Ambient Temperature Operation

-20 °C ... 80 °C

Outer Sheath Material

PVC

Cable Outer Diameter

6.5mm

Connection Meets Standards

UL758

Connection Volume

1

Flame Retardant

ULVW-1

Single Stranded Wire Material

Tinned copper

Maximum Allowable Working Voltage

30VDC

Exit Angle

90°

Outer Sheathcolor

black

Single Wire Number Of Twisted Wires

40

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Products Weight Without Packaging

50

Gasoline Resistance

≤246Ω/KM

Shield

Yes

Oil Resistance

Oil resistant

Connection Name

On-site side

Kablo Uzunluğu

0.5米

Single Strand Crosssectional Area

0.08mm²

Single Strand Cross Section Awg

28

Maximum Current Carrying Capacity Of Each Path

0.7A

Packing Unit

1

Spacing

2.54mm
