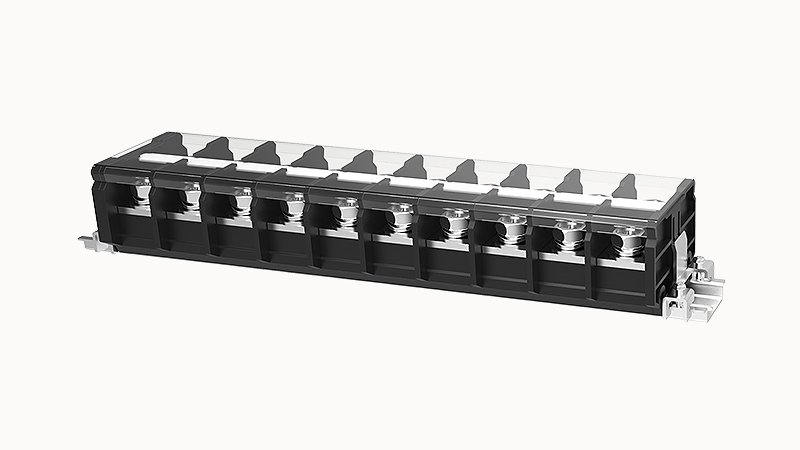

DGR100-00A(H)-10P

Specifications

Rated Voltage C

600V

Environmental Items

Compliant with REACH/RoHS

Insulation Materials

PC

Rated Current

Rated current;125A

Insulating Material Group

Ⅲa

Contact Materials

Copper alloy

Rated Voltage D

600V

Contact Point Metal Surface

Nickel plating

Type Of Installation

panel

Ambient Temperature Operation

-40℃~125℃(depending on derating curve)

Packing Unit

1

Screwdriver

Phillips screwdriver

Number Of Potentials

10

Pitch

25mm

Rated Voltage B

600V

Products Weight Without Packaging

852

Pin Arrangement

Double-row in a straight line

Connection Method

Screw connection

Sıra Sayısı

1

Test Specification

UL1059

Awg

20~2AWG

Rated Current B

101A

Rated Current C

101A

Flammability Rating

UL94V-0

Screw Thread

M8

Pluggable Or Not

no

Rated Current D

5A
