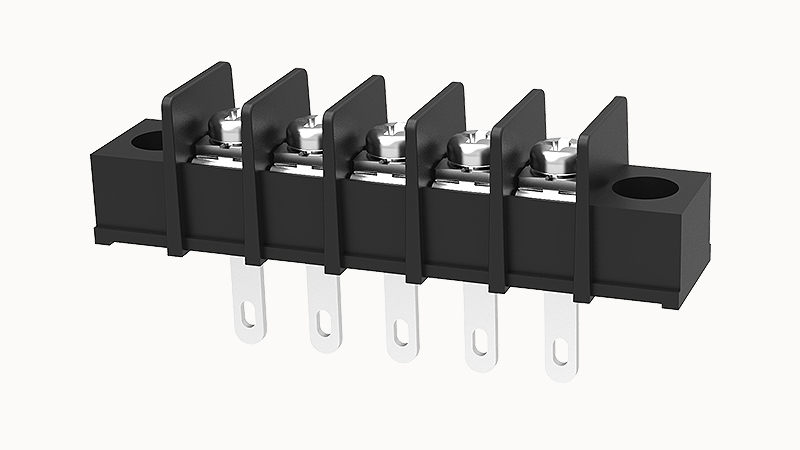

DG25H-A-05P

Specifications

Rated Current

Rated current;24A

Rated Current B

15A

Environmental Items

Compliant with REACH/RoHS

Flammability Rating

UL94V-0

Torque

0.5N.m

Screwdriver

slotted-phillips screwdriver

Rated Voltage D

300V

Rated Voltage B

300V

Packing Unit

350

Number Of Potentials

5

Connection Method

Screw connection

Test Specification

UL1059

Pluggable Or Not

no

Awg

22~14AWG

Sıra Sayısı

1

Pitch

7.62mm

Type Of Installation

PCB welding

Process

Wave soldering/manual soldering

Contact Point Metal Surface

tin-plated

Insulating Material Group

Ⅰ

Rated Current D

10A

Insulation Materials

PA66

Contact Materials

Copper alloy

Pin Arrangement

Single row in a straight line

Ambient Temperature Operation

-40℃~105℃(depending on derating curve)

Screw Thread

M3

Products Weight Without Packaging

16.4
