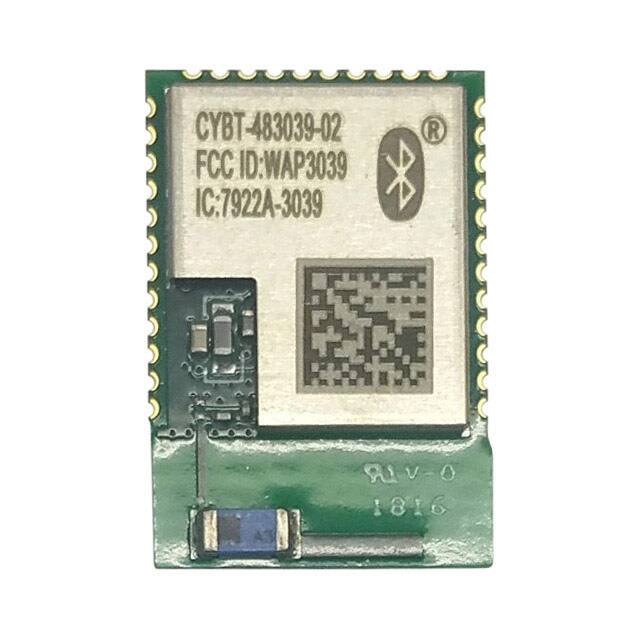

CYBT-483039-02

Specifications

Current Transmitting

5.6mA

Kılıf / Paket

34-SMD Module

Uzunluk

18.59mm

Parça Durumu

Active

Genişlik

12.75mm

Receiver Sensitivity

-95dBm

RoHS Durumu

ROHS3 Compliant

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Besleme Gerilimi

1.76V~3.63V

Ürün Durumu

Obsolete

Serial Interfaces

ADC, I2C, I2S, PCM, PWM, SPI, UART

Çalışma Sıcaklığı

-30°C~85°C

Frekans

2.402GHz~2.48GHz

Fabrika Tedarik Süresi

13 Weeks

Telecom Ic Type

TELECOM CIRCUIT

Power Output

20dBm

Seri

EZ-BT™ XR WICED®

Data Rate

3Mbps

Rf Familystandard

Bluetooth

Protocol

Bluetooth v5.0 + EDR

Maks. Çalışma Sıcaklığı

+85 °C

Memory Size

1MB Flash 512kB SRAM

Modulation

8DPSK, DQPSK, GFSK

Current Receiving

5.9mA

Maximum Output Power

20dBm

Dimensions

18.59 x 12.75 x 1.8mm

Antenna Type

Integrated, Chip

Sensitivity

-95dBm

Minimum Operating Temperature

-30 °C

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Yükseklik

1.8mm

Utilized Ic Part

CYW20719

Nem Hassasiyeti (MSL)

3 (168 Hours)
