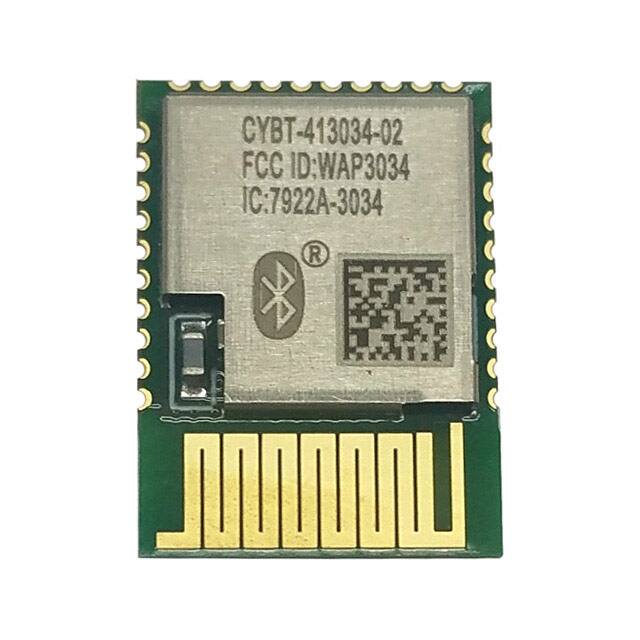

CYBT-413034-02

Specifications

Current Receiving

5.9mA

Current Transmitting

5.6mA

Dimensions

16.3 x 12 x 1.7mm

Data Rate

3Mbps

Maks. Çalışma Sıcaklığı

+85 °C

Protocol

Bluetooth v5.0 + EDR

RoHS Durumu

ROHS3 Compliant

Genişlik

12mm

Receiver Sensitivity

-95dBm

Ambalaj

Tape & Reel (TR)

Rf Familystandard

Bluetooth

Ürün Durumu

Obsolete

Fabrika Tedarik Süresi

13 Weeks

Parça Durumu

Active

Nem Hassasiyeti (MSL)

3 (168 Hours)

Çalışma Sıcaklığı

-30°C~85°C

Frekans

2.402GHz~2.48GHz

Antenna Type

Integrated, Chip

Utilized Ic Part

CYW20719

Telecom Ic Type

TELECOM CIRCUIT

Memory Size

1MB Flash 512kB SRAM

Besleme Gerilimi

1.76V~3.63V

Uzunluk

16.3mm

Yükseklik

1.7mm

Modulation

8DPSK, DQPSK, GFSK

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Serial Interfaces

ADC, I2C, I2S, PCM, PWM, SPI, UART

Montaj Tipi

Surface Mount

Minimum Operating Temperature

-30 °C

Power Output

4dBm

Kılıf / Paket

30-SMD Module

Maximum Output Power

4dBm

Seri

EZ-BT™ WICED®

Sensitivity

-95dBm
