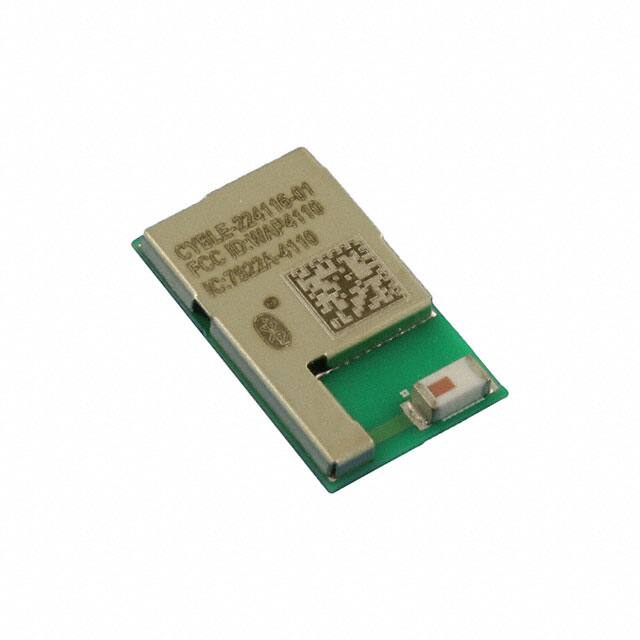

CYBLE-224116-01

Specifications

Operating Supply Current

33 mA

Receiver Sensitivity

-95dBm

Genişlik

9.5mm

RoHS Durumu

ROHS3 Compliant

Terminal Sayısı

32

Data Rate

8Mbps

Current Receiving

21.5mA

Pin Sayısı

32

Dimensions

15.4 x 9.5 x 1.8mm

ECCN Kodu

5A992.B

Maximum Data Rate

1 Mbps

HTS Kodu

8473.30.11.80

Frekans

2.4GHz

Yayın Yılı

2018

Rf Familystandard

Bluetooth

Ürün Durumu

Active

Supply Current Receiving

16.4 mA

Jesd30 Code

R-XXMA-N32

Yüzey Montaj

YES

Serial Interfaces

I2C, SPI, UART

Minimum Operating Temperature

-40 °C

Terminal Formu

NO LEAD

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Yükseklik

1.8mm

Telecom Ic Type

TELECOM CIRCUIT

Fonksiyon Sayısı

1

Tip

Creator XT/XR BT 4.2 Module

Number Of Channels

1

Maks. Oturma Yüksekliği

1.9mm

Seri

EZ-BLE™ PSoC®

Operating Supply Voltage

3.3, 4.2 V

Maximum Output Power

9.5dBm

Terminal Pozisyonu

UNSPECIFIED

Power Output

9.5dBm

Kılıf / Paket

32-SMD Module

Supply Voltagemin

2 V

Protocol

Bluetooth v4.2

Operating Frequency

2402 to 2480 MHz

Supplier Package

SMD

Supply Current Transmitting

20 mA
