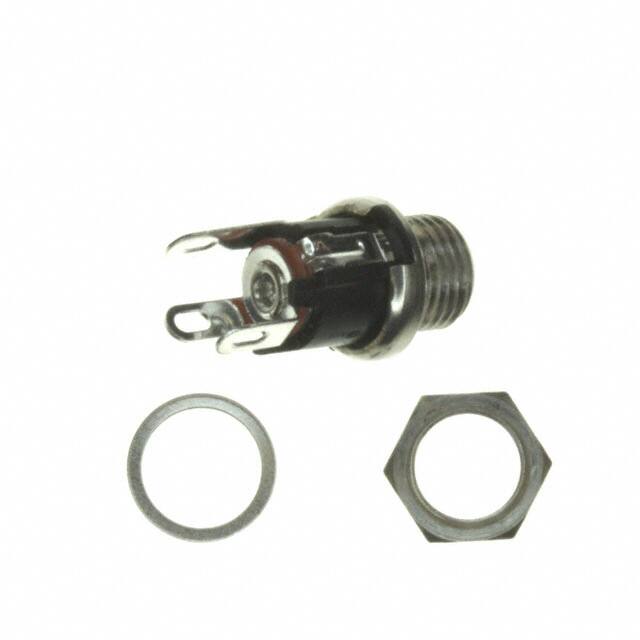

PJ-005B

Specifications

Body Material

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Parça Durumu

Active

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Mating Lengthdepth

0.354 9.00mm

Ambalaj

Bulk

Çalışma Sıcaklığı

-40°C~70°C

Çap

2.5mm

Terminal

Solder Eyelet(s)

Current Rating Amps

5A

Contact Materials

Brass, Phosphor Bronze

Housing Material

Polybutylene Terephthalate (PBT)

Fabrika Tedarik Süresi

12 Weeks

Montaj Tipi

Panel Mount, Through Hole

Mounting Feature

Bulkhead - Front Side Nut

Body Color

Silver, Black

Renk

Black

Montaj

Bulkhead, Front Side Nut, Panel

Includes

3 pcs - 1 Connector, 1 Nut, 1 Washer

Contact Gender

Male

Connector Type

Jack

Insulation Resistance

100MOhm

Shielding

Unshielded

Maks. Çalışma Sıcaklığı

70°C

Min. Çalışma Sıcaklığı

-40°C

Actual Diameter

0.098 (2.50mm ID), 0.224 (5.70mm OD)

Number Of Conductors

2

Internal Switchs

Single Switch, Normally Closed

Özellikler

Mounting Hardware, Thread Lock

Yayın Yılı

2011

Flammability Rating

UL94 V-0

Industry Recognized Mating Diameter

2.50mm ID (0.098), 5.50mm OD (0.217)

Contact Material Plating

Silver

Contact Plating

Nickel

Number Of Positionscontacts

2 Conductors, 3 Contacts

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Gender

Male
