PJ-005A

Specifications

Body Material

Brass

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Parça Durumu

Active

Mating Lengthdepth

0.354 9.00mm

Çap

2.1mm

Çalışma Sıcaklığı

-40°C~70°C

Ambalaj

Bulk

Contact Materials

Brass, Phosphor Bronze

Housing Material

Polybutylene Terephthalate (PBT)

Current Rating Amps

5A

Terminal

Solder Eyelet(s)

Renk

Black

Body Color

Silver, Black

Mounting Feature

Bulkhead - Front Side Nut

Montaj Tipi

Panel Mount, Through Hole

Fabrika Tedarik Süresi

12 Weeks

Contact Gender

Male

Connector Type

Jack

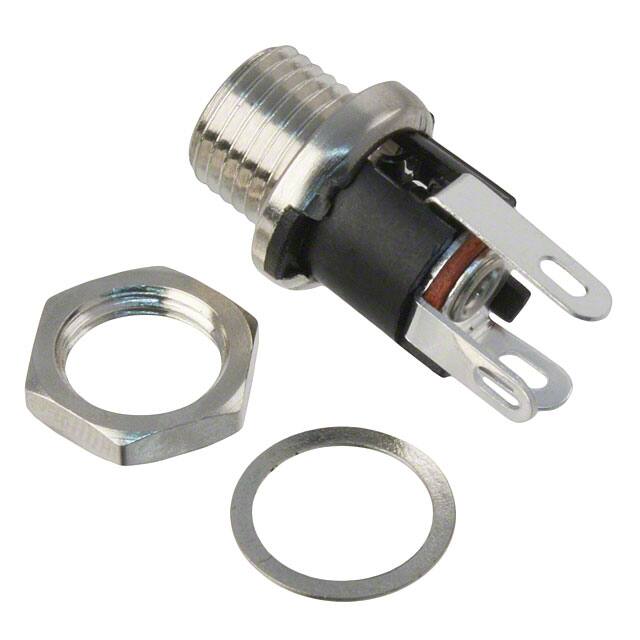

Includes

3 pcs - 1 Connector, 1 Nut, 1 Washer

Montaj

Bulkhead, Front Side Nut, Panel

Min. Çalışma Sıcaklığı

-40°C

Maks. Çalışma Sıcaklığı

70°C

Shielding

Unshielded

Insulation Resistance

100MOhm

Actual Diameter

0.079 (2.00mm ID), 0.224 (5.70mm OD)

Internal Switchs

Single Switch, Normally Closed

Number Of Conductors

2

Yayın Yılı

2011

Orientation

Vertical

Özellikler

Mounting Hardware, Thread Lock

Flammability Rating

UL94 V-0

Industry Recognized Mating Diameter

2.10mm ID (0.083), 5.50mm OD (0.217)

Number Of Positionscontacts

2 Conductors, 3 Contacts

Contact Plating

Nickel

Contact Material Plating

Silver

Gender

Male

Nominal Gerilim

24VDC
