Specifications
- Material
- Aluminum
- Base Thickness
- 1mm
- Thermal Resistance Natural
- 17.05°C/W
- Part Life Cycle Code
- Active
- Material Finishing
- anodized
- Material Finish
- Black Anodized
- Üretici Parça No

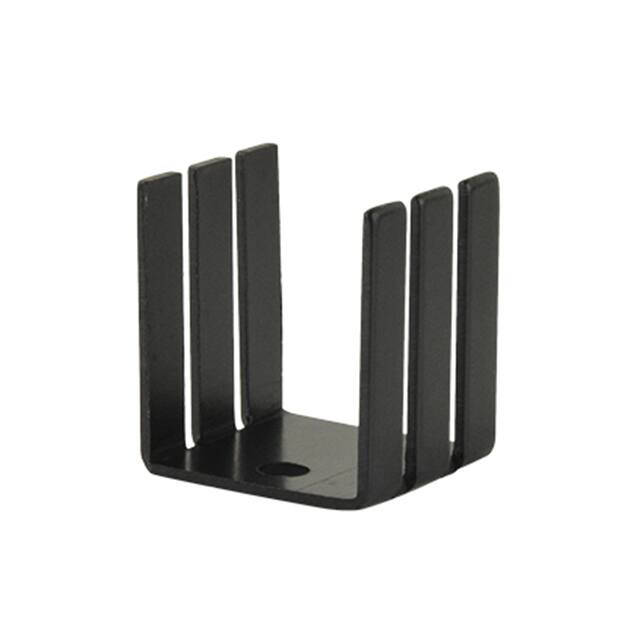

- HSS-B20-NP-11
- Genişlik
- 0.779 19.80mm
- Risk Rank
- 5.59
- Certificates
- RoHS compliant
- Mounting
- screw
- Heatsink Shape
- U
- Thermal Resistance Forced Air Flow
- 6.86°C/W @ 200 LFM
- Attachment Method
- Bolt On
- Tip
- Board Level
- Yükseklik
- 21.59mm
- Fabrika Tedarik Süresi
- 11 Weeks
- Parça Durumu
- Active
- Power Dissipation Temperature Rise
- 4.4W @ 75°C
- Gross Weight
- 19g
- Package Cooled
- TO-220
- Uzunluk
- 0.700 17.78mm
- Nem Hassasiyeti (MSL)
- Not Applicable
- Ihs Manufacturer
- CUI DEVICES
- Type Of Heatsink
- extruded
- REACH Uyumluluk Kodu
- compliant
- Seri
- HSS
- Colour
- black
- Thermal Resistance
- max. 22.64°C/W
- Thermal Resistance200 Lfm
- 6.86°C/W
- Height Off Base Height Of Fin
- 0.850 21.60mm
- Shape
- Rectangular, Fins
- Applications
- TO220
- RoHS Durumu
- RoHS Compliant
