Volume pricing
- 1+ pcs$0.38
- 10+ pcs$0.36
- 100+ pcs$0.34
- 500+ pcs$0.32
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

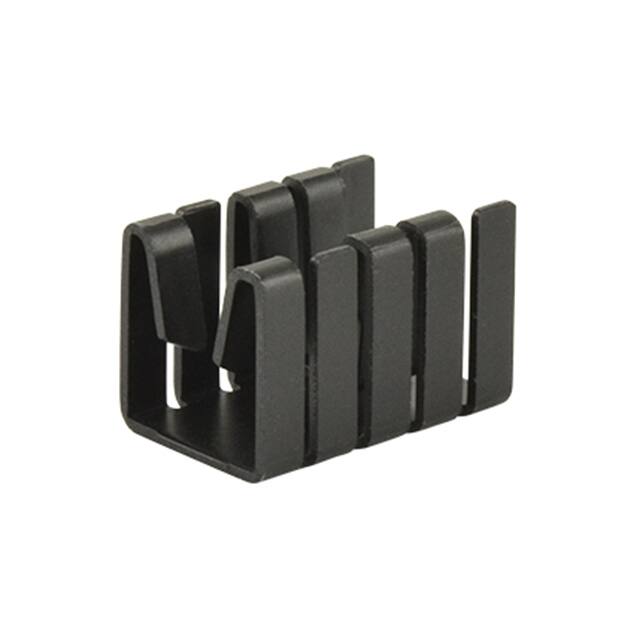

Specifications
- Package Cooled
- TO-220
- Power Dissipation Temperature Rise
- 2.9W @ 75°C
- Gross Weight
- 14.4g
- Nem Hassasiyeti (MSL)
- Not Applicable
- Uzunluk
- 0.748 19.00mm
- Thermal Resistance Forced Air Flow
- 7.24°C/W @ 200 LFM
- Attachment Method
- PC Pin
- Tip
- Board Level
- Yükseklik
- 12.7mm
- Fabrika Tedarik Süresi
- 11 Weeks
- Parça Durumu
- Active
- Thermal Resistance200 Lfm
- 7.24°C/W
- Shape
- Rectangular, Fins
- Height Off Base Height Of Fin
- 0.500 12.70mm
- Applications
- TO220
- RoHS Durumu
- RoHS Compliant
- Type Of Heatsink
- extruded
- Thermal Resistance
- max. 30.86°C/W
- Colour
- black
- Seri
- HSS
- Material Finish
- Black Anodized
- Material
- Aluminum
- Base Thickness
- 800µm
- Thermal Resistance Natural
- 25.92°C/W
- Material Finishing
- anodized
- Mounting
- PCB
- Certificates
- RoHS compliant
- Heatsink Shape
- U
- Genişlik
- 0.504 12.80mm
