Volume pricing
- 1+ pcs$0.42
- 10+ pcs$0.39
- 100+ pcs$0.37
- 500+ pcs$0.35
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Samacsys Description

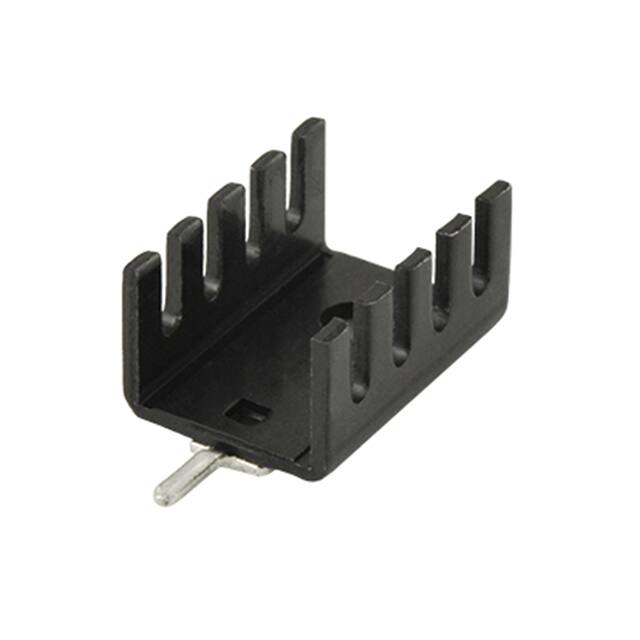

- Heat Sinks 19.05 x 13.21x9.53mm TO-220 solder pin
- Üretici Parça No
- HSS-B20-0635H-01
- Material Finish
- Black Anodized
- Device Used On
- TRANSISTOR
- Thermal Resistance Natural
- 27.78°C/W
- Material
- Aluminum
- Base Thickness
- 1.2mm
- Body Material
- ALUMINUM ALLOY
- Part Life Cycle Code
- Active
- Material Finishing
- anodized
- Mounting
- screw
- Certificates
- RoHS compliant
- Heatsink Shape
- U
- Genişlik
- 0.375 9.53mm
- Thermal Support Device Type
- HEAT SINK
- Risk Rank
- 1.59
- Renk
- BLACK
- Nem Hassasiyeti (MSL)
- Not Applicable
- Uzunluk
- 0.520 13.20mm
- Package Cooled
- TO-220
- Construction
- U
- Gross Weight
- 0.85g
- Power Dissipation Temperature Rise
- 2.7W @ 75°C
- Weight
- 1.7 g
- Ihs Manufacturer
- CUI DEVICES
- Tip
- Board Level, Vertical
- Attachment Method
- PC Pin
- Finish
- ANODIZED
- Thermal Resistance Forced Air Flow
- 9.51°C/W @ 200 LFM
- Parça Durumu
- Active
- Yükseklik
- 19.05 mm
- Fabrika Tedarik Süresi
- 11 Weeks
- Fin Orientation
- TRANSVERSE
- Shape
- Rectangular, Fins
- Height Off Base Height Of Fin
- 0.748 19.00mm
- Thermal Resistance200 Lfm
- 99.51°C/W
- RoHS Durumu
- RoHS Compliant
- Applications
- TO220
- Rohs Code
- Yes
- REACH Uyumluluk Kodu
- compliant
