Volume pricing
- 1+ pcs$0.54
- 10+ pcs$0.51
- 100+ pcs$0.48
- 500+ pcs$0.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Type Of Heatsink
- extruded
- Samacsys Description

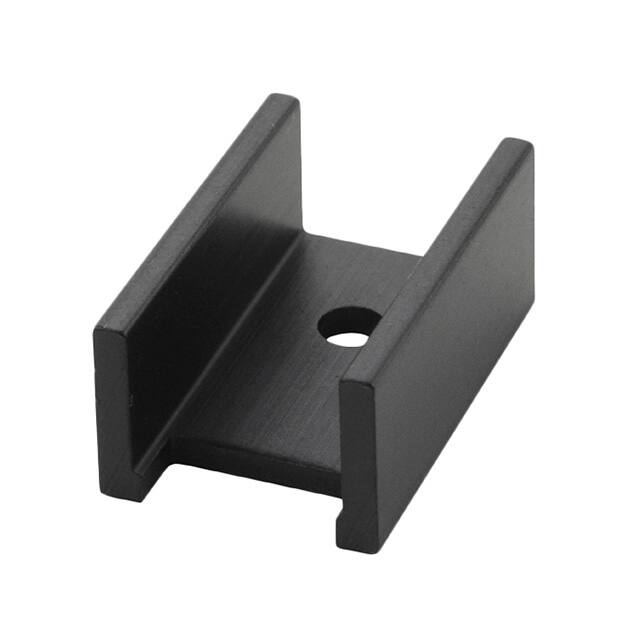

- Heat Sinks 25x16x11mm extrusion TO-220 bolt on
- Height Off Base Height Of Fin
- 0.354 9.00mm
- Mounting
- screw
- Thermal Resistance200 Lfm
- 6.12°C/W
- Base Thickness
- 2mm
- Material Finish
- Black Anodized
- Heatsink Shape
- U
- RoHS Durumu
- RoHS Compliant
- REACH Uyumluluk Kodu
- compliant
- Risk Rank
- 2.15
- Shape
- Rectangular, Fins
- Material Finishing
- anodized
- Fabrika Tedarik Süresi
- 11 Weeks
- Thermal Resistance
- max. 20.99°C/W
- Thermal Resistance Forced Air Flow
- 6.12°C/W @ 200 LFM
- Gross Weight
- 12.8g
- Package Cooled
- TO-220
- Thermal Resistance Natural
- 19.74°C/W
- Seri
- HSE
- Colour
- black
- Material
- Aluminum Alloy
- Certificates
- RoHS compliant
- Rohs Code
- Yes
- Uzunluk
- 0.984 25.00mm
- Attachment Method
- Bolt On
- Part Life Cycle Code
- Active
- Tip
- Board Level
- Parça Durumu
- Active
- Yükseklik
- 11mm
- Power Dissipation Temperature Rise
- 3.8W @ 75°C
- Nem Hassasiyeti (MSL)
- Not Applicable
- Üretici Parça No
- HSE-B2111-038
- Applications
- TO220
- Ihs Manufacturer
- CUI DEVICES
- Genişlik
- 0.625 16.00mm
