Volume pricing
- 1+ pcs$1.19
- 10+ pcs$1.12
- 100+ pcs$1.06
- 500+ pcs$1.00
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

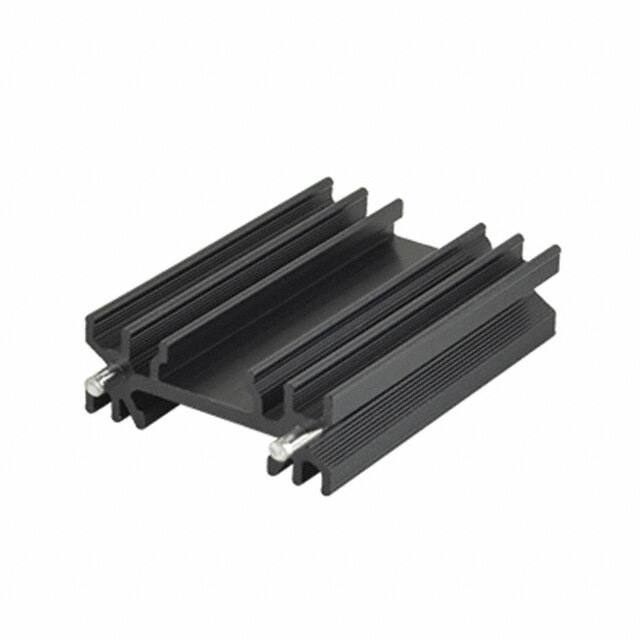

Specifications
- RoHS Durumu
- RoHS Compliant
- Heatsink Shape
- H
- Shape
- Rectangular, Fins
- Type Of Heatsink
- extruded
- Height Off Base Height Of Fin
- 0.492 12.50mm
- Mounting
- screw
- Material Finish
- Black Anodized
- Base Thickness
- 2mm
- Thermal Resistance200 Lfm
- 2.85°C/W
- Thermal Resistance Natural
- 8.43°C/W
- Colour
- black
- Seri
- HSE
- Material
- Aluminum Alloy
- Fabrika Tedarik Süresi
- 11 Weeks
- Material Finishing
- anodized
- Thermal Resistance
- max. 11.67°C/W
- Gross Weight
- 19.44g
- Thermal Resistance Forced Air Flow
- 8.90°C/W @ 200 LFM
- Package Cooled
- TO-220
- Tip
- Board Level, Vertical
- Parça Durumu
- Active
- Certificates
- RoHS compliant
- Uzunluk
- 1.969 50.00mm
- Attachment Method
- PC Pin
- Yükseklik
- 12.5mm
- Power Dissipation Temperature Rise
- 8.9W @ 75°C
- Nem Hassasiyeti (MSL)
- Not Applicable
- Applications
- TO220
- Genişlik
- 1.359 34.50mm
