Volume pricing
- 1+ pcs$1.36
- 10+ pcs$1.28
- 100+ pcs$1.21
- 500+ pcs$1.14
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

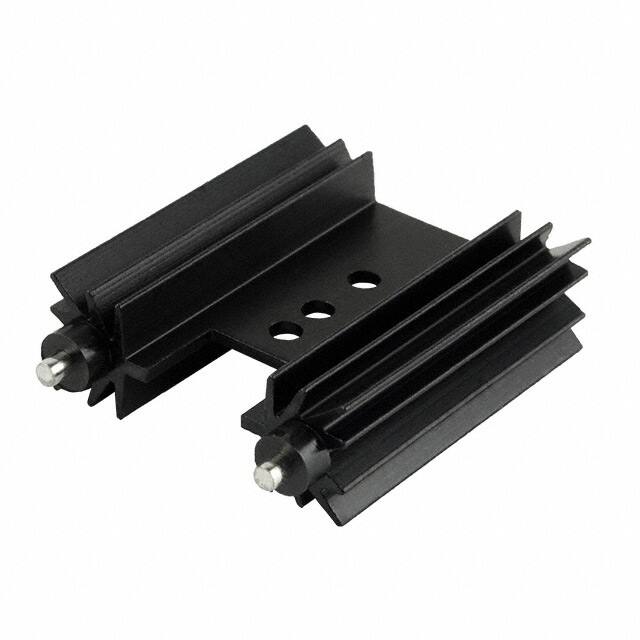

Specifications
- Fabrika Tedarik Süresi
- 11 Weeks
- Material Finishing
- anodized
- Thermal Resistance
- max. 15°C/W
- Package Cooled
- TO-220
- Thermal Resistance Forced Air Flow
- 3.53°C/W @ 200 LFM
- Gross Weight
- 16.67g
- Thermal Resistance Natural
- 11.19°C/W
- Seri
- HSE
- Colour
- black
- Material
- Aluminum Alloy
- Type Of Heatsink
- extruded
- Height Off Base Height Of Fin
- 0.500 12.70mm
- Mounting
- screw
- Base Thickness
- 1.57mm
- Material Finish
- Black Anodized
- Thermal Resistance200 Lfm
- 3.53°C/W
- REACH Uyumluluk Kodu
- compliant
- Heatsink Shape
- H
- RoHS Durumu
- RoHS Compliant
- Shape
- Rectangular, Fins
- Risk Rank
- 5.57
- Applications
- TO220
- Üretici Parça No
- HSE-B20381-056H
- Nem Hassasiyeti (MSL)
- Not Applicable
- Yükseklik
- 12.7mm
- Power Dissipation Temperature Rise
- 6.7W @ 75°C
- Genişlik
- 1.378 35.00mm
- Ihs Manufacturer
- CUI DEVICES
- Rohs Code
- Yes
- Certificates
- RoHS compliant
- Attachment Method
- PC Pin
- Uzunluk
- 1.500 38.10mm
- Part Life Cycle Code
- Active
- Tip
- Board Level, Vertical
- Parça Durumu
- Active
