Specifications
- Ihs Manufacturer
- CUI DEVICES
- Genişlik
- 1.378 35.00mm
- Power Dissipation Temperature Rise
- 6.9W @ 75°C
- Nem Hassasiyeti (MSL)
- Not Applicable
- Üretici Parça No
- HSE-B20381-035H-02
- Rohs Code
- Yes
- Uzunluk
- 1.500 38.10mm
- Attachment Method
- PC Pin
- Parça Durumu
- Active
- Part Life Cycle Code
- Active
- Tip
- Board Level, Vertical
- Thermal Resistance Forced Air Flow
- 3.32°C/W @ 200 LFM
- Package Cooled
- TO-220
- Fabrika Tedarik Süresi
- 11 Weeks
- RoHS
- Yes
- Material
- Aluminum Alloy
- Thermal Resistance Natural
- 10.87°C/W
- Seri
- HSE
- Material Finish
- Black Anodized
- Samacsys Description

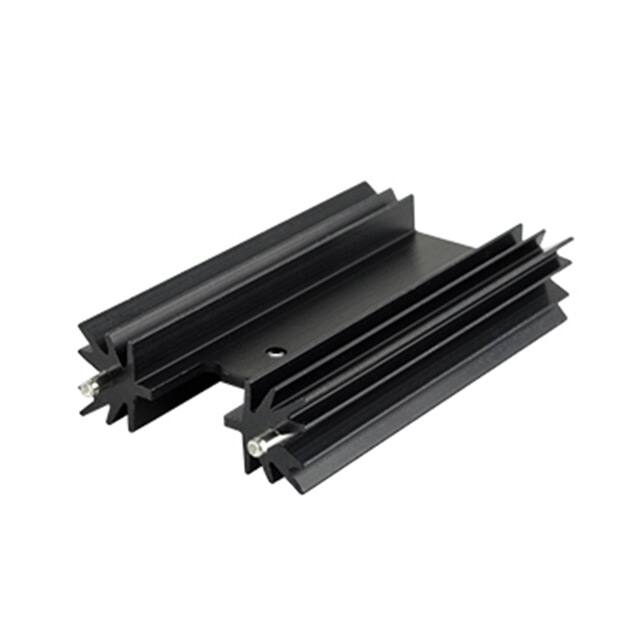

- Heat Sink Passive TO-220 Vertical Thru-Hole Aluminum 6063-T5 Black Anodized
- Height Off Base Height Of Fin
- 0.500 12.70mm
- Shape
- Rectangular, Fins
- Risk Rank
- 5.57
- RoHS Durumu
- RoHS Compliant
- REACH Uyumluluk Kodu
- compliant
