Volume pricing
- 1+ pcs$1.04
- 10+ pcs$0.98
- 100+ pcs$0.93
- 500+ pcs$0.88
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Material Finish
- Black Anodized
- Insulated
- No
- Surface Protection
- Tinned
- Height Off Base Height Of Fin
- 0.984 25.00mm
- Shape
- Rectangular, Fins
- Risk Rank
- 2.17
- RoHS Durumu
- RoHS Compliant
- REACH Uyumluluk Kodu
- compliant
- Thermal Resistance Forced Air Flow
- 3.09°C/W @ 200 LFM
- Nominal Cross Section
- 6
- Package Cooled
- TO-218
- Fabrika Tedarik Süresi
- 11 Weeks
- Material
- Aluminum Alloy
- Thermal Resistance Natural
- 9.26°C/W
- Seri
- HSE
- Rohs Code
- Yes
- Uzunluk
- 1.000 25.40mm
- Construction Type
- Standard
- Attachment Method
- PC Pin
- For Cables Resistant To Short Circuit
- No
- With Identification Flag
- No
- Parça Durumu
- Active
- Reelroll Packaging
- No
- Sleeve Length
- 10
- Part Life Cycle Code
- Active
- Tip
- Board Level, Vertical
- Ihs Manufacturer
- CUI DEVICES
- Genişlik
- 1.638 41.60mm
- Power Dissipation Temperature Rise
- 8.1W @ 75°C
- Nem Hassasiyeti (MSL)
- Not Applicable

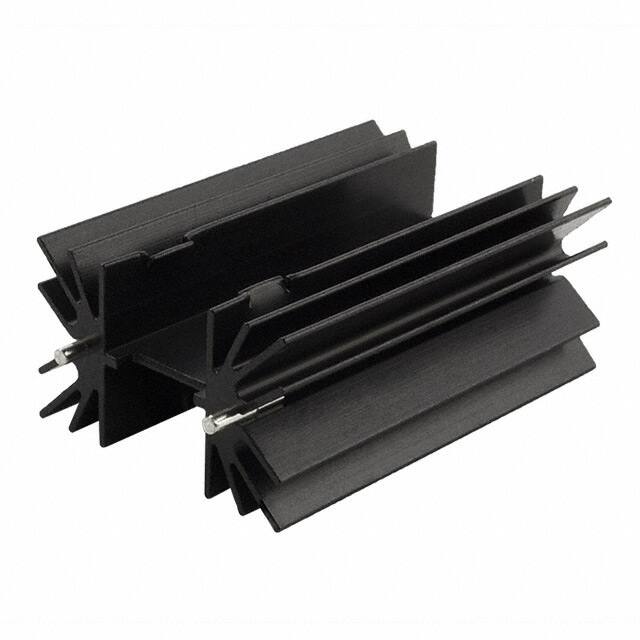

- Üretici Parça No
- HSE-B18254-035H
