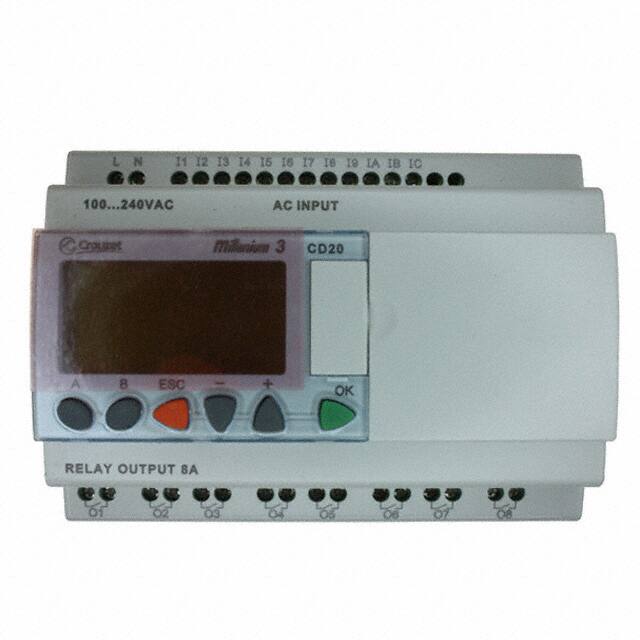

88970053

Specifications

Çalışma Sıcaklığı

-20°C~55°C

Terminal

Screw

Max Input Voltage

240V

Mechanical Life

1e+07 cycles

Montaj

DIN Rail, Panel

Uzunluk

107.6mm

Reach Svhc

No SVHC

Kılıf / Paket

100

Number Of Outputs And Type

8 - Relay

Number Of Inputs

12

Depth

70mm

Number Of Characters Per Row

18, 18, 18, 18

RoHS Durumu

RoHS Compliant

Besleme Gerilimi

100V~240VAC

Number Of Outputs

8

Yayın Yılı

2005

Display Type

LCD - Black Characters, Green Backlight

Expandable

Non-Expandable

Genişlik

125mm

Ingress Protection

IP40

Montaj Tipi

Chassis Mount, DIN Rail

Parça Durumu

Obsolete

Min Input Voltage

100V

Onay Kuruluşu

CE, CSA, GL, UL

Number Of Inputs And Type

12 - Digital

Memory Size

368Bits/200Words

Nem Hassasiyeti (MSL)

Not Applicable

Software

M3 Soft

Seri

Millenium 3, CD20

Özellikler

Battery Backup (Lithium)

Response Time

5 ms

Ratings

IP20, IP40
