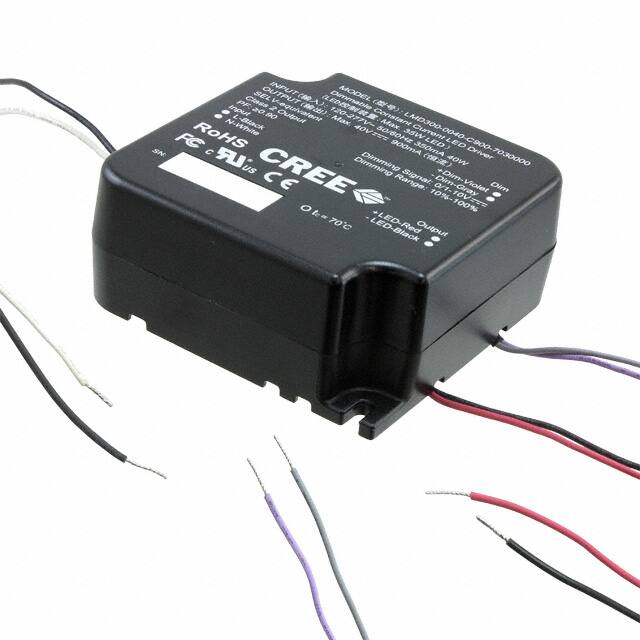

LMD300-0040-C900-7030000

Specifications

Parça Durumu

Active

Voltage Input Min

108VAC

Boyut / Ölçü

3.54Lx3.54W x 1.48 H 90.0mmx90.0mmx37.5mm

Number Of Outputs

1

Current Output1

900mA

Efficiency

86%

Output Voltage

40V

Max Output Power

36W

Çalışma Sıcaklığı

0°C~70°C

Max Output Voltage

40V

Dimming

Analog

Radyasyon Dayanımı

No

Ürün Durumu

Obsolete

Terminal

Wire Leads

Montaj Tipi

Chassis Mount

Terminal Stili

Wire Leads

Tip

Constant Current

Max Power Dissipation

36W

Input Voltage

108 → 305 V

Weight

0.43lb 195.04g

Max Supply Voltage

277V

Maximum Output Power

36W

Topology

AC DC Converter

Reach Svhc

Unknown

Fabrika Tedarik Süresi

4 Weeks

Output Current

900mA

Yükseklik

37.592mm

Seri

LMD300

Onay Kuruluşu

CE, CQC, cULus

Güç (Watt)

36 W

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ratings

IP20, NEMA 410

Voltage Input Max

305VAC

Voltage Rating

108 → 305V

Montaj

Chassis Mount, Screw

Output Power

40W

RoHS Durumu

RoHS Compliant

Temel Ürün No

LMD300

Paket

Tray

Ip Rating

IP20
