Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Voltage Rated Dc
- 3.5kV
- Kurşunsuz
- Lead Free
- Material Insulation
- Polyamide (PA66), Nylon 6/6
- Operating Supply Voltage
- 3.5kV
- Parça Durumu
- Active
- Number Of Contacts
- 1
- Boyut / Ölçü
- 0.188Diax0.312L 4.78mmx7.92mm
- Nominal Gerilim
- 3.5kV
- Material Body
- Beryllium Copper
- Akım Değeri
- 5A
- Radyasyon Dayanımı
- No
- Montaj Tipi
- 0.052 (1.32mm) Hole Diameter
- Gender
- Female
- Plating
- Silver
- Tip

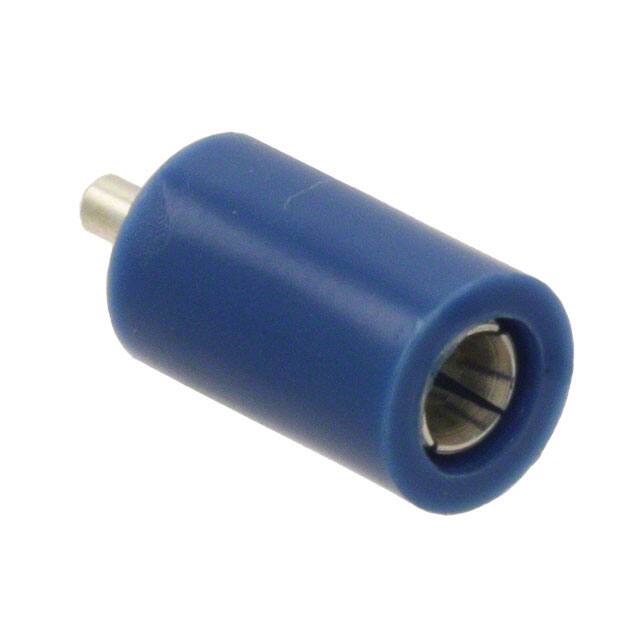

- PC Test Point Jack
- Contact Materials
- Copper
- Yayın Yılı
- 2002
- Material
- Nylon, Polyamide
- Insulation
- Mating End Insulated
- Max Current Rating
- 5A
- Montaj
- Through Hole, Vertical
- RoHS Durumu
- RoHS Compliant
- Ambalaj
- Bulk
- Orientation
- Straight
- Additional Feature
- APPLICATION: TEST POINTS
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal
- Solder
- Fabrika Tedarik Süresi
- 7 Weeks
- Renk
- Blue
