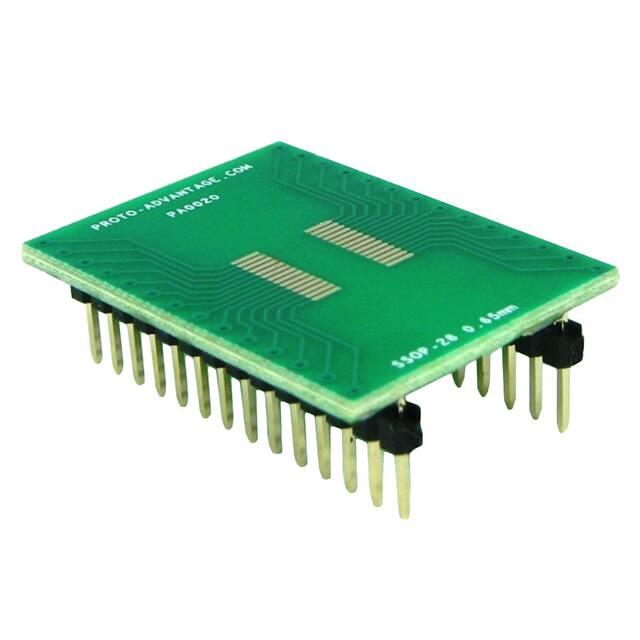

PA0020

Specifications

Dc Resistance Dcr

0.18Ohm

Seri

Proto-Advantage

Board Thickness

0.062 1.57mm 1/16

Operating Temperature Max

125°C

Test Frequency

1MHz

Material

FR4 Epoxy Glass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Boyut / Ölçü

1.000 x 1.400 25.40mmx35.56mm

Operating Temperature Min

-55°C

Rated Currentmax

1.1A

Terminal Shape

WRAPAROUND

Endüktans

1 μH

RoHS Durumu

ROHS3 Compliant

Shapesize Description

RECTANGULAR PACKAGE

Package Accepted

SSOP

Pitch

0.026 0.65mm

Terminal Placement

DUAL ENDED

Fonksiyon Sayısı

1

Pozisyon Sayısı

28

Terminal Sayısı

2

Proto Board Type

SMD to DIP

Inductor Application

POWER INDUCTOR

Inductor Type

GENERAL PURPOSE INDUCTOR

Special Features

DCR MEASURED AT 30% TOLERANCE

Tolerans

20%

Shielding

YES

Yüzey Montaj

YES

Yayın Yılı

2009

Fabrika Tedarik Süresi

2 Weeks

Parça Durumu

Active
