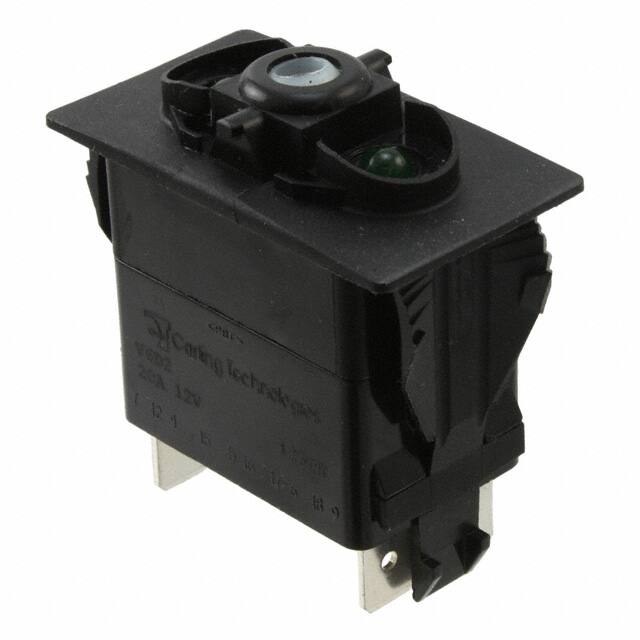

V6D2UHHB-00000-000

Specifications

Electricallife

50,000 Cycles

Current Rating Amps

20A DC

Insulation Resistance

50000000Ohm

Length Termination

0.4 inch

Akım Değeri

20A

Kurşunsuz

Lead Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Quick Connect

Montaj Tipi

Panel Mount, Snap-In

Voltage Rated Dc

12V

Ingress Protection

IP66/68 - Dust Tight, Water Resistant, Waterproof

Contact Resistance

0.01mOhm

Montaj

Panel, Snap in

ECCN Kodu

EAR99

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Max Voltage Rating Dc

12V

Contact Materials

Silver, Tin

Body Height

27.4066mm

Circuit

SPDT

Illumination Voltage Nominal

12VDC

Ratings

Dust Tight, IP66, Water Resistant, Waterproof

Actuator Type

Actuator Arm, Cap Required - Illuminated

Panel Cutout Dimensions

Rectangular - 36.83mm x 21.08mm

Yayın Yılı

1999

Mechanical Life

150,000 Cycles

HTS Kodu

8536.50.90.65

Dielectric Withstanding Voltage

1500VRMS V

Actuator Marking

Varies by Cap

Seri

V-Series Contura

Illumination Type

LED

Ambalaj

Bulk

Radyasyon Dayanımı

No

Switch Function

On-Off-On

Illumination Type Color

LED, Green

Insulation Materials

POLYESTER

Switch Type

ROCKER SWITCH

Contact Dc Max Rating R Load

20A@12VDC

Parça Durumu

Active

Fabrika Tedarik Süresi

6 Weeks

Çalışma Sıcaklığı

-40°C~85°C
