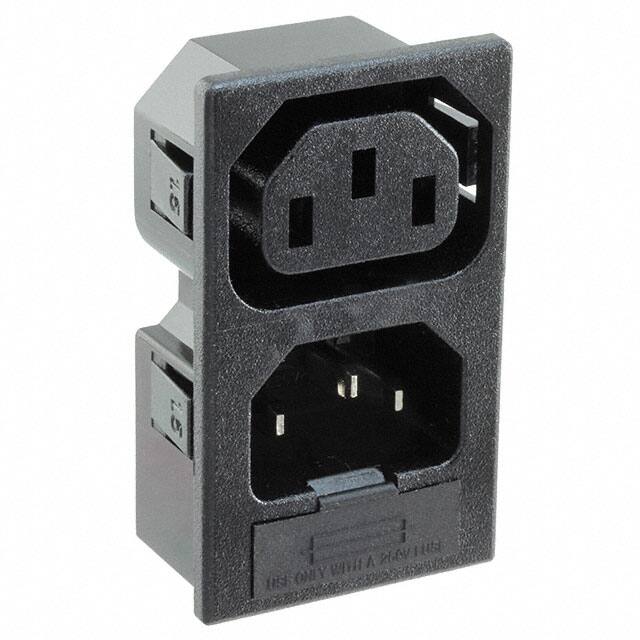

PX0718/1/15/ST

Specifications

Din Conformance

NO

Panel Thickness

0.059 1.50mm

Renk

Black

Terminal

Quick Connect - 0.189 (4.8mm)

Maks. Çalışma Sıcaklığı

70°C

Accomodates A Fuse

Yes (Fuse Not Included)

Shell Material

GLASS FILLED POLYETHELENE

Voltage Rated Dc

250V

Number Of Ports

2

Fuse Holder Drawer

Fuse Holder

Iec Conformance

YES

Yükseklik

57.1mm

Montaj

Panel, Snap in

ECCN Kodu

EAR99

Total Number Of Contacts

6

JESD-609 Kodu

e3

Parça Durumu

Active

Voltage Rated Ac

250V

Fabrika Tedarik Süresi

24 Weeks

Onay Kuruluşu

cULus

Fuse

Yes

Voltageiec

250VAC

Contact Finish Mating

TIN

Min. Çalışma Sıcaklığı

-20°C

Filter Type

Unfiltered - Commercial

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Uzunluk

35mm

Reach Svhc

No SVHC

Option

GENERAL PURPOSE

Max Current Rating

10A

Pozisyon Sayısı

3 per connection (2)

Insulation Resistance

100MOhm

Panel Cutout Dimensions

Rectangular - 32.50mm x 55.20mm

Akım

15A

Flammability Rating

UL94 V-0

Orientation

Straight

Gender

Receptacle
