Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Number Of Elements
- 8
- ECCN Kodu
- EAR99
- Number Of Segments
- 7
- Fabrika Tedarik Süresi
- 13 Weeks
- Reach Svhc
- No SVHC

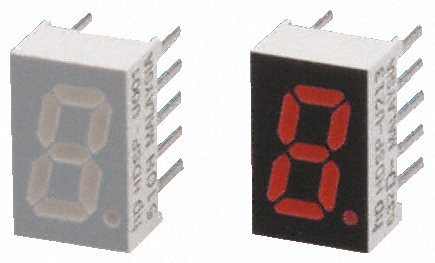

- Display Type
- 7-Segment
- Kılıf / Paket
- 10-DIP (0.209, 5.30mm)
- Maks. Çalışma Sıcaklığı
- 90°C
- Radyasyon Dayanımı
- No
- Yükseklik
- 10.9982mm
- Kurşunsuz
- Lead Free
- Ambalaj
- Tube
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Characters
- 1
- Forward Voltagemax
- 2.2V
- Common Pin
- Common Anode
- Terminal Kaplaması
- Tin/Silver/Copper (Sn/Ag/Cu)
- Current Test
- 5mA
- Yayın Yılı
- 2004
- Dominant Wavelength
- 637 nm
- Montaj
- Through Hole
- Wavelength Peak
- 645nm
- Forward Current
- 20mA
- RoHS Durumu
- ROHS3 Compliant
- Fonksiyon Sayısı
- 1
- Pin Sayısı
- 10
- Voltage Forward Vf Typ
- 1.7V
- Parça Durumu
- Active
- Viewing Area Height
- 8mm
- Operating Supply Voltage
- 1.6V
- Reverse Voltage
- 15V
- Digitalpha Size
- 0.31 8.00mm
- Power Consumption
- 37mW
- Element Configuration
- Common Anode
- Character Width
- 4mm
- Min. Çalışma Sıcaklığı
- -20°C
- Character Height
- 8mm
- Luminous Intensity
- 3.6 mcd
- Power Dissipation
- 37mW
- Boyut / Ölçü
- 0.433 Hx0.280W x 0.197 D 11.00mmx7.10mmx5.00mm
