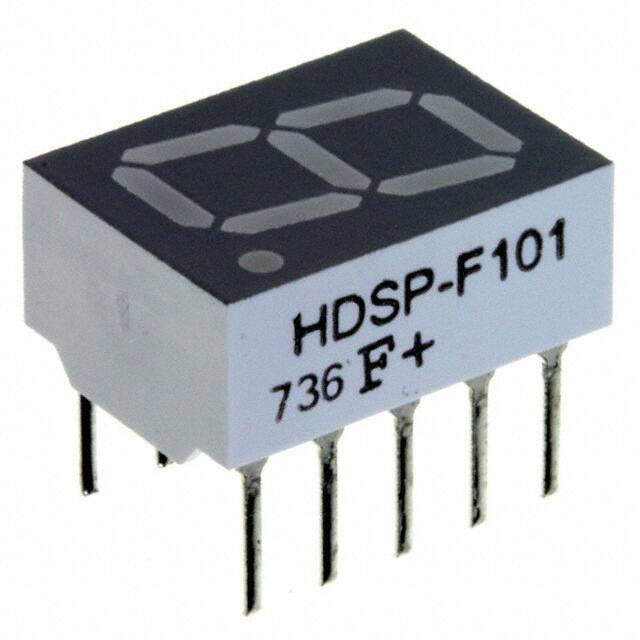

HDSP-F101

Specifications

Power Consumption

37mW

Viewing Area Height

10.16mm

JESD-609 Kodu

e1

Parça Durumu

Active

Operating Supply Voltage

1.8V

Maks. Çalışma Sıcaklığı

100°C

Digitalpha Size

0.40 10.16mm

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Luminous Intensity

3.9 mcd

ECCN Kodu

EAR99

Number Of Elements

8

Power Dissipation

37mW

Yükseklik

12.9032mm

Element Configuration

Common Anode

Depth

9.79mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Display Type

7-Segment

Wavelength Peak

645nm

Voltage Forward Vf Typ

1.7V

Boyut / Ölçü

0.508 Hx0.385W x 0.250 D 12.90mmx9.79mmx6.36mm

Yayın Yılı

2006

Character Height

10mm

Common Pin

Common Anode

Renk

Red

Montaj

Through Hole

Current Test

5mA

RoHS Durumu

ROHS3 Compliant

Dominant Wavelength

637 nm

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Number Of Characters

1

Number Of Segments

7

Kılıf / Paket

10-DIP (0.300, 7.62mm)

Character Width

5.59mm

Ambalaj

Tube

Reach Svhc

No SVHC

Forward Current

20mA

Fonksiyon Sayısı

1

Reverse Voltage

15V

Forward Voltagemax

2.2V
