Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- RoHS Durumu
- RoHS Compliant
- REACH Uyumluluk Kodu
- unknown
- Montaj
- Through Hole
- Common Pin
- Common Cathode
- Renk
- Red
- Number Of Characters
- 1
- Operating Temperature Min
- -40°C
- Dominant Wavelength
- 643 nm
- Reverse Voltage
- 20V
- Reach Svhc
- No SVHC
- Forward Current
- 20mA
- Fonksiyon Sayısı
- 1
- Kılıf / Paket
- 10-DIP (2.370, 60.20mm)
- Ambalaj
- Tube
- Forward Voltagemax
- 8V
- Pin Sayısı
- 10
- Parça Durumu
- Obsolete
- Viewing Area Height
- 56.8mm
- JESD-609 Kodu
- e3

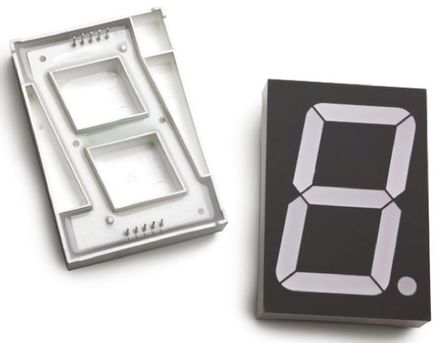

- Optoelectronic Device Type
- SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
- ECCN Kodu
- EAR99
- Terminal Kaplaması
- Tin (Sn)
- Millicandela Rating
- 78mcd
- Luminous Intensity
- 78 mcd
- Digitalpha Size
- 2.30 58.42mm
- Element Configuration
- Common Cathode
- Yükseklik
- 69.6976mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Depth
- 69.7mm
- Additional Feature
- HIGH RELIABILITY
- Number Of Elements
- 8
- Boyut / Ölçü
- 2.744 Hx1.882W x 0.472 D 69.70mmx47.80mmx12.00mm
- Yayın Yılı
- 2010
- Character Height
- 56.8mm
- Power Dissipation Max
- 200mW
- Wavelength Peak
- 660nm
- Voltage Forward Vf Typ
- 7.4V
- Display Type
- 7-Segment
