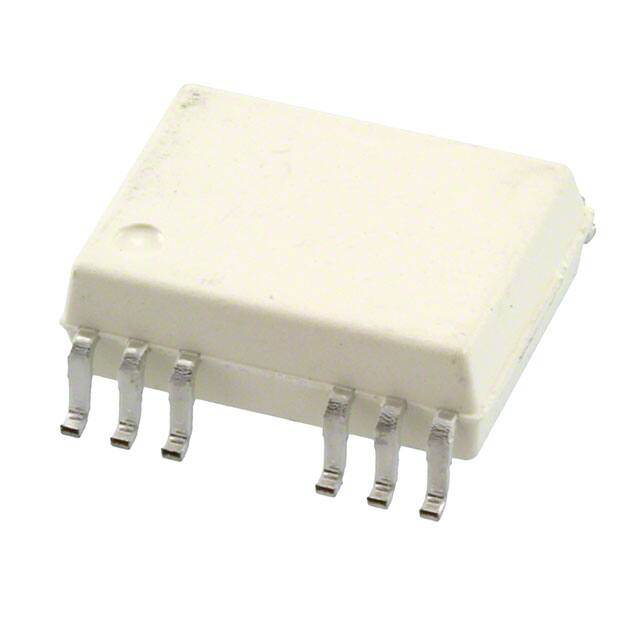

HCPL-314J-000E

Specifications

Number Of Elements

2

Input Current

12mA

Reverse Breakdown Voltage

3V

RoHS Durumu

ROHS3 Compliant

Pin Sayısı

16

Yayın Yılı

2005

Terminal Kaplaması

Matte Tin (Sn)

Turn On Delay Time

300 ns

Çalışma Sıcaklığı

-40°C~100°C

Supply Voltagemin Vsup

10V

Voltage Output Supply

10V~30V

Power Dissipation

260mW

Voltage Isolation

5000Vrms

Max Power Dissipation

260mW

Kılıf / Paket

16-SOIC (0.295, 7.50mm Width)

HTS Kodu

8541.40.80.00

ECCN Kodu

EAR99

Montaj

Surface Mount

Radyasyon Dayanımı

No

Additional Feature

UL RECOGNIZED, VDE APPROVED

Max Input Current

16mA

JESD-609 Kodu

e3

Propagation Delay

700 ns

Rise Fall Time Typ

50ns 50ns

Output Voltage

30V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Output Current

600mA

Max Output Voltage

35V

Onay Kuruluşu

CSA, IEC/EN/DIN, UR

Montaj Tipi

Surface Mount

Voltage Forward Vf Typ

1.5V

Fall Time Typ

50 ns

Direction

Unidirectional

Ambalaj

Tube

Propagation Delay Tplh Tphl Max

700ns, 700ns

Fabrika Tedarik Süresi

22 Weeks

Rise Time

50ns

Reach Svhc

No SVHC

Optoelectronic Device Type

LOGIC IC OUTPUT OPTOCOUPLER

Number Of Channels

2
