Specifications
- Yayın Yılı
- 2010
- Min. Çalışma Sıcaklığı
- -40°C
- Temel Parça No

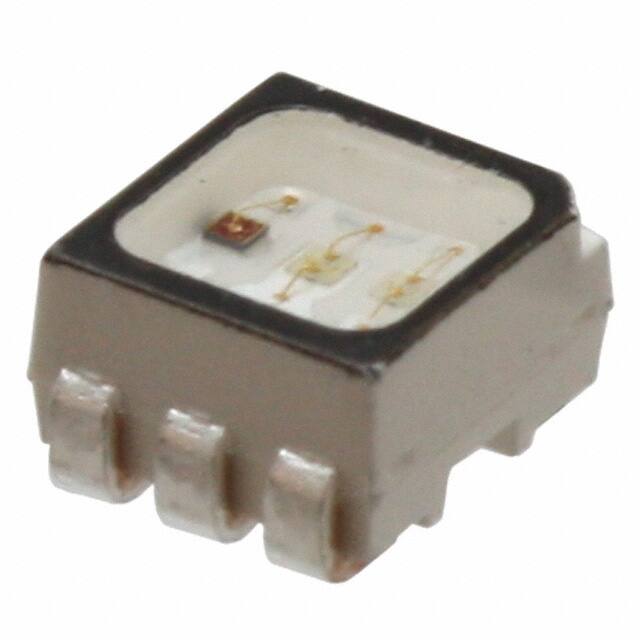

- ASMT-YTB2
- Lens Color
- Colorless
- Millicandela Rating
- 745mcd Red, 1600mcd Green, 380mcd Blue
- RoHS Durumu
- ROHS3 Compliant
- Orientation
- Top View
- Lens Transparency
- Clear
- Number Of Elements
- 3
- Parça Durumu
- Active
- Contact Plating
- Silver
- Renk
- Red, Green, Blue (RGB)
- Optoelectronic Device Type
- TRIPLE COLOR LED
- Voltage Forward Vf Typ
- 2.1V Red 3.2V Green 3.2V Blue
- Fabrika Tedarik Süresi
- 18 Weeks
- Reverse Voltage
- 4V
- Shape
- RECTANGULAR
- Fonksiyon Sayısı
- 1
- Kurşunsuz
- Lead Free
- Boyut / Ölçü
- 3.00mm Lx2.80mm W
- Terminal Sayısı
- 6
- Radyasyon Dayanımı
- No
- Nem Hassasiyeti (MSL)
- 2A (4 Weeks)
- Luminous Intensity
- 380 mcd
- Ambalaj
- Tape & Reel (TR)
- Packing Method
- TAPE AND REEL 7"
- Max Junction Temperature Tj
- 125°C
- Maks. Çalışma Sıcaklığı
- 110°C
- Yükseklik
- 2mm
- Viewing Angle
- 120°
- Forward Current
- 20mA
- Wavelength Peak
- 629nm Red 521nm Green 464nm Blue
- Lens Size
- 2.30mm
- Reach Svhc
- No SVHC
- Additional Feature
- HIGH RELIABILITY
- Lens Style
- Square with Flat Top
- HTS Kodu
- 8541.40.20.00
- Montaj
- Surface Mount
- Terminal Adımı
- 2.95mm
- Depth
- 3mm
