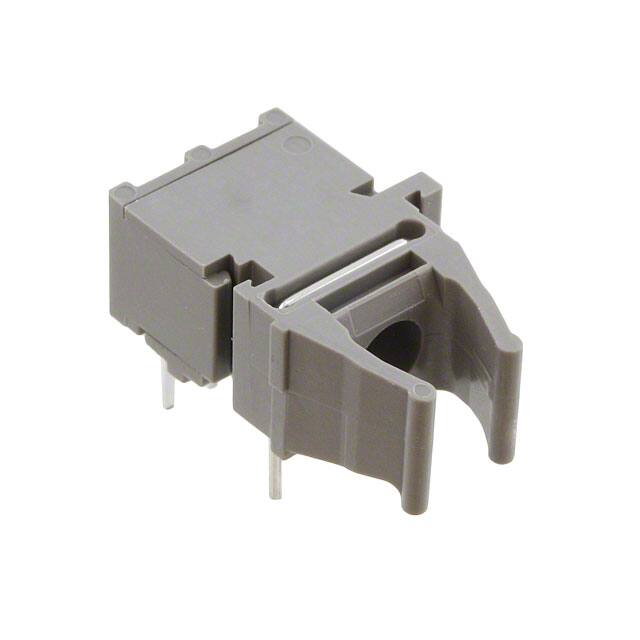

AFBR-1624Z

Specifications

Operating Temperaturemin

-40 °C

Operating Temperaturemax

85 °C

RoHS Durumu

ROHS3 Compliant

Operating Supply Voltage

3.3V

Genişlik

12.19mm

Fall Time Typ

5 ns

Seri

Versatile Link

HTS Kodu

8517.62.00.50

Kurşunsuz Kodu

Yes

Uzunluk

18.8mm

Maks. Çalışma Sıcaklığı

85°C

Supply Voltagenom

3.3 V

Optical Power Outputnom

0.63mW

Ihs Manufacturer

AVAGO TECHNOLOGIES INC

Usage Level

Industrial grade

Min. Çalışma Sıcaklığı

-40°C

Yayın Yılı

2012

Parça Durumu

Active

Additional Feature

IT ALSO HAS SUPPLY VOLTAGE 4.75 TO 5.25 V, PCS FIBER TYPE AND OUPUT OPTICAL POWER IS -13 DBM

Supply Voltagemax

3.465 V

Data Rate

50MBd

Montaj

Through Hole

Fiber Type

POF

Besleme Gerilimi

3.135V~3.465V 4.75V~5.25V

Operating Wavelengthmax

685 nm

Mounting Feature

THROUGH HOLE MOUNT

Operating Supply Current

21mA

Part Life Cycle Code

Active

Operating Wavelengthmin

630 nm

Transmission Type

DIGITAL

Emitterdetector Type

LED

Terminal Kaplaması

Tin (Sn)

Communication Standard

RS-232, RS-485

Nem Hassasiyeti (MSL)

3 (168 Hours)

Yükseklik

7.62mm

JESD-609 Kodu

e3

REACH Uyumluluk Kodu

compliant

Rise Time

5ns

Supply Voltagemin

3.135 V

Forward Voltage

3.3V
