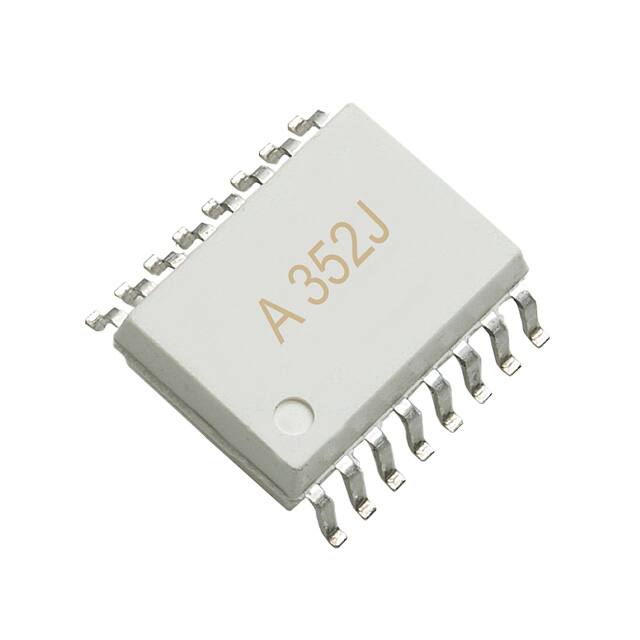

ACPL-352J-500E

Specifications

Pulse Width Distortion Max

50ns

Tepe Reflow Sıcaklığı (°C)

260

Interface Ic Type

BUFFER OR INVERTER BASED PERIPHERAL DRIVER

RoHS Durumu

Non-RoHS Compliant

Kılıf / Paket

16-SOIC (0.295, 7.50mm Width)

Rise Fall Time Typ

37ns 30ns

Voltage Output Supply

15V~30V

Number Of Channels

1

Current Dc Forward If Max

25mA

Tepe Reflow Süresi (maks. sn)

40

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

17 Weeks

Onay Kuruluşu

CSA, IEC/EN/DIN, UR

Ambalaj

Tape & Reel (TR)

Voltage Forward Vf Typ

1.55V

Propagation Delay Tplh Tphl Max

150ns, 150ns

Common Mode Transient Immunity Min

50kV/μs

ECCN Kodu

EAR99

Voltage Isolation

5000Vrms

Parça Durumu

Active
