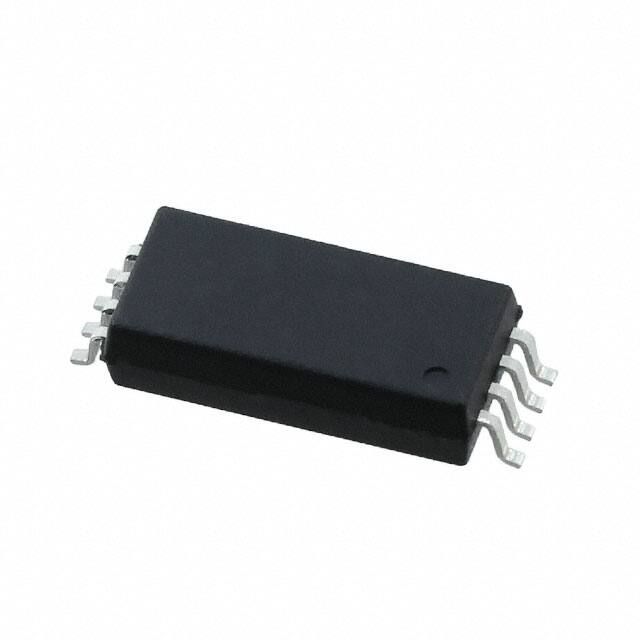

ACNT-H313-000E

Specifications

Yayın Yılı

2014

Voltage Forward Vf Typ

1.45V

Ambalaj

Bulk

Montaj Tipi

Surface Mount

Max Output Current

2.5A

Rise Fall Time Typ

100ns 100ns

Operating Supply Voltage

30V

Propagation Delay Tplh Tphl Max

500ns, 500ns

Montaj

Surface Mount

Onay Kuruluşu

CSA, IEC/EN/DIN, UR

Pin Sayısı

8

Voltage Output Supply

15V~30V

JESD-609 Kodu

e3

Propagation Delay

500 ns

Common Mode Transient Immunity Min

40kV/μs

Current Dc Forward If Max

25mA

RoHS Durumu

ROHS3 Compliant

Reach Svhc

No SVHC

Optoelectronic Device Type

LOGIC IC OUTPUT OPTOCOUPLER

Number Of Channels

1

Pulse Width Distortion Pwd

300 ns

Voltage Isolation

7500Vrms

Terminal Kaplaması

Tin (Sn)

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

22 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kılıf / Paket

8-SOIC (0.543, 13.80mm Width)
