Volume pricing
- 1+ pcs$0.57
- 10+ pcs$0.54
- 100+ pcs$0.51
- 500+ pcs$0.48
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

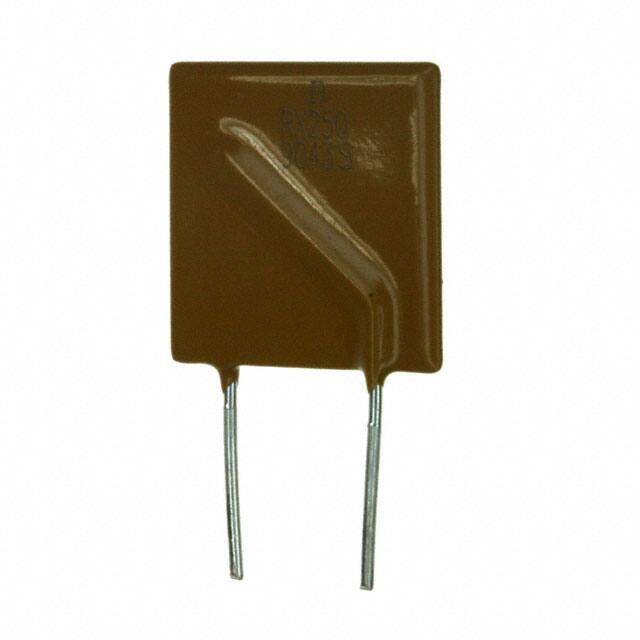

Specifications
- Voltage Rated Dc
- 72V
- Çalışma Sıcaklığı
- -40°C~85°C
- Maks. Oturma Yüksekliği
- 1.039 26.40mm
- Contact Plating
- Tin
- Montaj
- PCB, Through Hole
- Tip
- Polymeric
- Terminal Adımı
- 10.2mm
- Fabrika Tedarik Süresi
- 7 Weeks
- Kurşunsuz Kodu
- yes
- Akım Değeri
- 40A
- Resistance Post Trip R1 Max
- 130mOhm
- Max Power Dissipation
- 2.5W
- Radyasyon Dayanımı
- No
- Lead Length
- 7.6mm
- JESD-609 Kodu
- e3
- Reach Svhc
- No SVHC
- Boyut / Ölçü
- 0.839Lx0.122W 21.30mmx3.10mm
- Wirecable Diameter
- 810 μm
- Kılıf / Paket
- Radial, Disc
- Yükseklik
- 3.1mm
- Terminal Shape
- WIRE
- Temel Parça No
- MF-RX
- Flammability Rating
- UL94 V-0
- Max Current Rating
- 40A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Body Material
- Polymer
- Operating Supply Voltage
- 72V
- Time To Trip
- 15.6s
- Terminal Sayısı
- 2
- Thermistor Application
- OVERLOAD PROTECTION
- Parça Durumu
- Active
- Direnç
- 80mOhm
- Ambalaj
- Bulk
- RoHS Durumu
- ROHS3 Compliant
- Kurşunsuz
- Lead Free
- Yayın Yılı
- 2008
- Lead Diameter
- 810 μm
- Thickness
- 3.1mm
- Lead Spacing
- 0.402 10.20mm
- Onay Kuruluşu
- cURus, TUV
