Volume pricing
- 1+ pcs$0.57
- 10+ pcs$0.54
- 100+ pcs$0.51
- 500+ pcs$0.48
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

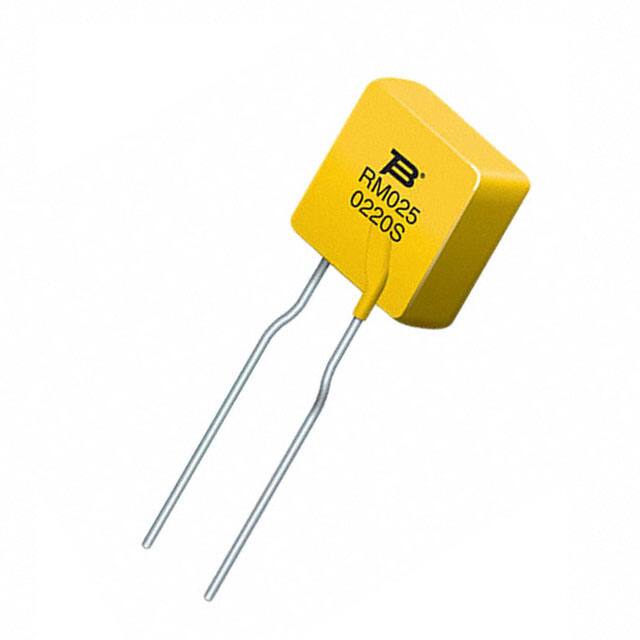

Specifications
- Time To Trip
- 18.5s
- Seri
- Multifuse®, MF-RM
- Montaj Tipi
- Through Hole
- Reach Svhc
- No SVHC
- Trip Current
- 560mA
- Kılıf / Paket
- Radial, Disc
- Max Power Dissipation
- 1.5W
- Hold Current
- 250mA
- Akım Değeri
- 3.5A
- Boyut / Ölçü
- 0.394Lx0.150W 10.00mmx3.80mm
- Voltage Rated Dc
- 240V
- JESD-609 Kodu
- e3
- Lead Spacing
- 0.114 2.90mm
- Max Voltage Rating Ac
- 240V
- Voltage Max
- 240V 265V Int
- Montaj
- PCB
- Tip
- Polymeric
- Onay Kuruluşu
- cURus, TUV
- Wirecable Diameter
- 650 μm
- Resistance Initial Ri Min
- 1.3Ohm
- HTS Kodu
- 8533.40.80.70
- Terminal
- Radial
- Direnç
- 1.3Ohm
- Ambalaj
- Cut Tape (CT)
- Çalışma Sıcaklığı
- -20°C~85°C
- Lead Pitch
- 5.1mm
- Terminal Kaplaması
- Tin (Sn)
- Yükseklik
- 3.8mm
- Resistance Post Trip R1 Max
- 3.8Ohm
- Voltage Rated Ac
- 240V
- Çap
- 10mm
- Operating Supply Voltage
- 240V
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Maks. Oturma Yüksekliği
- 0.787 20.00mm
- Yayın Yılı
- 2004
- Temel Parça No
- MF-RM
- Current Hold Ih Max
- 250mA
- Power Dissipation
- 1.5W
- RoHS Durumu
- ROHS3 Compliant
