Volume pricing
- 1+ pcs$0.85
- 10+ pcs$0.80
- 100+ pcs$0.75
- 500+ pcs$0.71
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

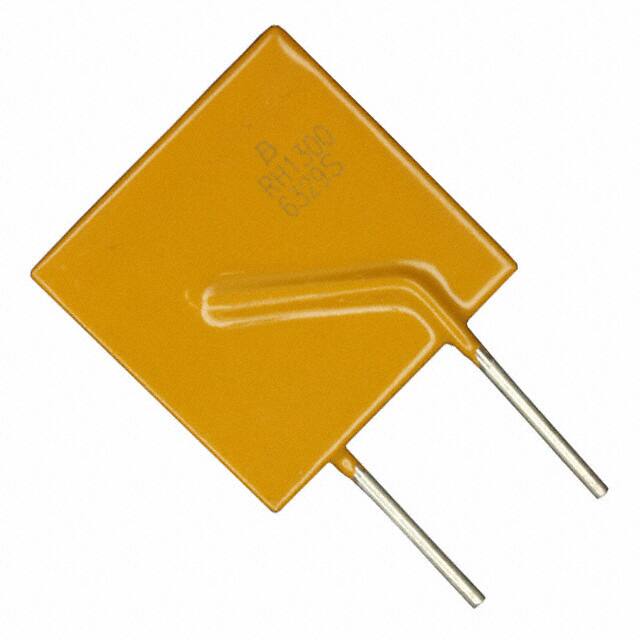

Specifications
- Maks. Oturma Yüksekliği
- 1.130 28.70mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Operating Supply Voltage
- 16V
- Resistance Post Trip R1 Max
- 10mOhm
- Thermistor Application
- OVERLOAD PROTECTION
- Fabrika Tedarik Süresi
- 9 Weeks
- Max Current Rating
- 100A
- Radyasyon Dayanımı
- No
- Power Dissipation
- 6.9W
- RoHS Durumu
- ROHS3 Compliant
- Temel Parça No
- MF-RHT
- Yayın Yılı
- 2007
- Ratings
- AEC-Q200
- JESD-609 Kodu
- e3
- Voltage Rated Dc
- 16V
- Terminal Shape
- WIRE
- Boyut / Ölçü
- 0.925Lx0.142W 23.50mmx3.60mm
- Kurşunsuz Kodu
- yes
- Nominal Gerilim
- 16V
- Akım Değeri
- 13A
- Hold Current
- 13A
- Kılıf / Paket
- Radial, Disc
- Trip Current
- 24A
- Reach Svhc
- No SVHC
- Montaj Tipi
- Through Hole
- Seri
- Multifuse®, MF-RHT
- Time To Trip
- 13s
- Additional Feature
- 0.0041 OHMS MINIMUM AT 23 DEG CEL
- Packing Method
- TR, 14.6 INCH
- Lead Pitch
- 5.1mm
- Terminal Kaplaması
- Tin (Sn)
- Çalışma Sıcaklığı
- -40°C~125°C
- Ambalaj
- Tape & Reel (TR)
- Terminal Sayısı
- 2
- Direnç
- 10mOhm
- Terminal
- Radial
- Resistance Initial Ri Min
- 4.1mOhm
- Wirecable Diameter
- 1 mm
- Tip
- Polymeric
