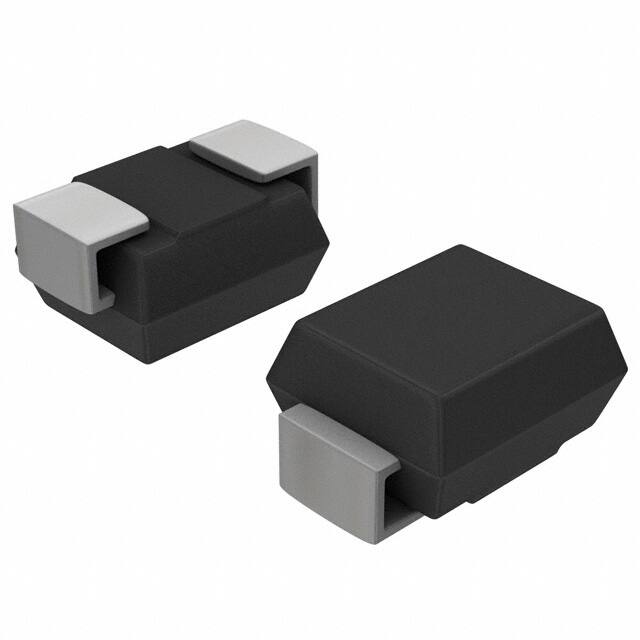

CD214B-B120LF

Specifications

Maks. Çalışma Sıcaklığı

125°C

JESD-609 Kodu

e3

Fabrika Tedarik Süresi

16 Weeks

Additional Feature

FREE WHEELING DIODE

Diode Type

Schottky

Pin Sayısı

2

Element Configuration

Single

Yayın Yılı

2008

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Qualification Status

Not Qualified

Contact Plating

Tin

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Kılıf / Paket

DO-214AA, SMB

Temel Parça No

CD214B

Voltage Forward Vf Max If

500mV @ 1A

Capacitance Vr F

110pF @ 4V 1MHz

Max Reverse Voltage Dc

20V

HTS Kodu

8541.10.00.80

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Formu

C BEND

Max Surge Current

30A

ECCN Kodu

EAR99

Operating Temperature Junction

-55°C~125°C

REACH Uyumluluk Kodu

not_compliant

Current Reverse Leakage Vr

500μA @ 20V

Ambalaj

Tape & Reel (TR)

Pin Sayısı

2

Forward Voltage

500mV

Number Of Elements

1

Montaj Tipi

Surface Mount

Max Repetitive Reverse Voltage Vrrm

20V

Terminal Pozisyonu

DUAL

Output Currentmax

1A

Peak Reverse Current

500μA

Terminal Sayısı

2

Max Reverse Leakage Current

500μA

Parça Durumu

Obsolete

Peak Nonrepetitive Surge Current

30A

Diode Element Material

SILICON

Average Rectified Current

1A
