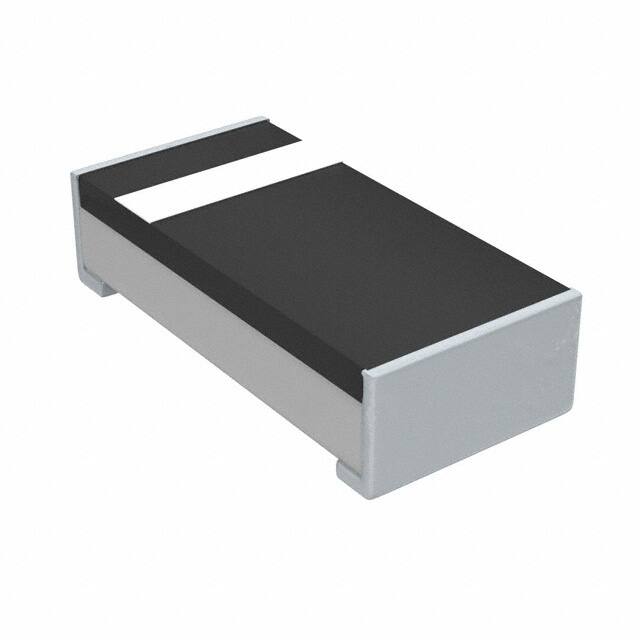

CD1206-S01575

Specifications

Uzunluk

3.4mm

Terminal Kaplaması

Gold (Au)

Case Code Metric

3216

Case Code Imperial

1206

Qualification Status

Not Qualified

Forward Voltage

1V

Max Forward Surge Current Ifsm

4A

Operating Temperature Junction

-55°C~125°C

Number Of Elements

1

Yayın Yılı

2006

Parça Durumu

Last Time Buy

Ambalaj

Cut Tape (CT)

Kılıf / Paket

1206 (3216 Metric)

Peak Reverse Current

2.5μA

Kurşunsuz Kodu

yes

Diode Type

Standard

Pin Sayısı

2

Yüzey Montaj

YES

Recovery Time

4 ns

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Formu

WRAP AROUND

Output Currentmax

0.15A

Average Rectified Current

150mA

Element Configuration

Single

Terminal Pozisyonu

DUAL

Voltage Forward Vf Max If

1V @ 50mA

Current Reverse Leakage Vr

2.5μA @ 100V

Genişlik

1.7mm

HTS Kodu

8541.10.00.70

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Reverse Recovery Time

4 ns

Max Surge Current

4A

JESD-609 Kodu

e4

Temel Parça No

CD1206

RoHS Durumu

ROHS3 Compliant

Peak Nonrepetitive Surge Current

4A

Pin Sayısı

2

Capacitance Vr F

3pF @ 0V 100MHz

Max Reverse Leakage Current

2.5μA

Min. Çalışma Sıcaklığı

-55°C
