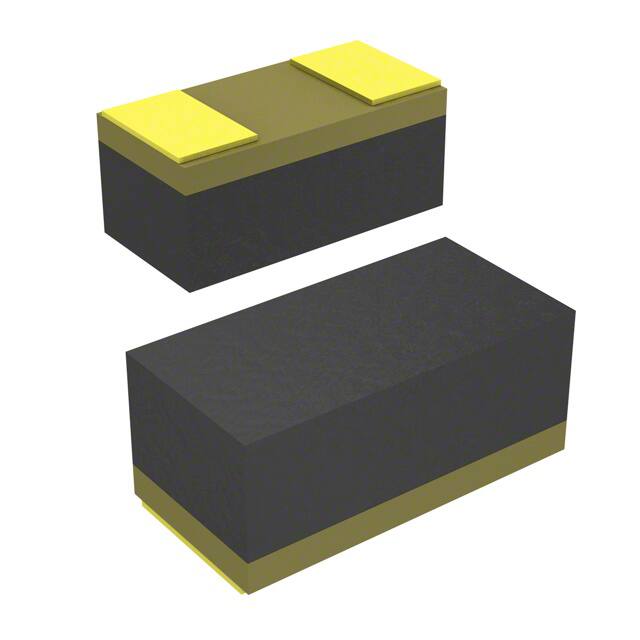

CD1005-S0180R

Specifications

Max Forward Surge Current Ifsm

1A

Temel Parça No

CD1005

JESD-609 Kodu

e4

Recovery Time

4 ns

Reverse Recovery Time

4 ns

Diode Type

Standard

Pin Sayısı

2

Element Configuration

Single

Qualification Status

Not Qualified

Terminal Formu

NO LEAD

Power Dissipation Max

0.3W

Operating Temperature Junction

-40°C~125°C

Case Code Metric

2512

Capacitance Vr F

4pF @ 1V 100MHz

Max Reverse Voltage Dc

80V

HTS Kodu

8541.10.00.70

Terminal Pozisyonu

DUAL

Forward Voltage

1V

Number Of Elements

1

Forward Current

100mA

Parça Durumu

Obsolete

Peak Nonrepetitive Surge Current

1A

Reach Svhc

Unknown

Case Code Imperial

1005

Speed

Small Signal =< 200mA (Io), Any Speed

Kılıf / Paket

1005 (2512 Metric)

Maks. Çalışma Sıcaklığı

125°C

Fabrika Tedarik Süresi

14 Weeks

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Yayın Yılı

2009

Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Max Surge Current

1A

ECCN Kodu

EAR99

Voltage Forward Vf Max If

1V @ 100mA

Max Repetitive Reverse Voltage Vrrm

90V

Peak Reverse Current

50nA

Current Reverse Leakage Vr

50nA @ 80V

Ambalaj

Tape & Reel (TR)
