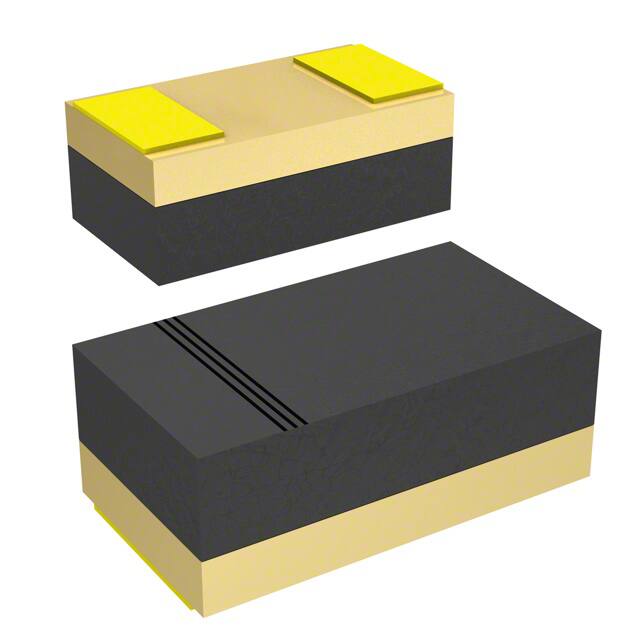

CD0603-B00340

Specifications

Element Configuration

Single

Qualification Status

Not Qualified

Pin Sayısı

2

Diode Type

Schottky

JESD-609 Kodu

e4

Temel Parça No

CD0603

Max Forward Surge Current Ifsm

500mA

Max Reverse Voltage Dc

40V

HTS Kodu

8541.10.00.70

Capacitance Vr F

1.5pF @ 1V 1MHz

Operating Temperature Junction

-40°C~125°C

Case Code Metric

1608

Power Dissipation Max

0.15W

Terminal Formu

NO LEAD

Forward Voltage

370mV

Number Of Elements

1

Genişlik

1mm

Terminal Pozisyonu

DUAL

Kapasitans

1.5pF

Parça Durumu

Obsolete

Peak Nonrepetitive Surge Current

500mA

Max Reverse Leakage Current

1μA

Terminal

SMD/SMT

Forward Current

30mA

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Yayın Yılı

2009

Contact Plating

Gold

Fabrika Tedarik Süresi

14 Weeks

Maks. Çalışma Sıcaklığı

125°C

Case Code Imperial

0603

Speed

Small Signal =< 200mA (Io), Any Speed

Kılıf / Paket

0603 (1608 Metric)

Yükseklik

850μm

Reach Svhc

No SVHC

Voltage Forward Vf Max If

370mV @ 1mA

ECCN Kodu

EAR99

Max Surge Current

500mA

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount
