Volume pricing
- 1+ pcs$0.88
- 10+ pcs$0.83
- 100+ pcs$0.79
- 500+ pcs$0.74
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

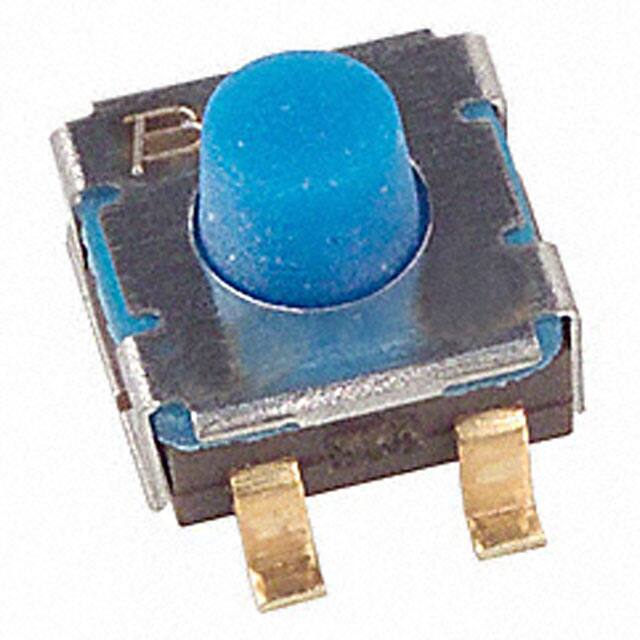

Specifications
- Contact Plating
- Silver
- Contact Function
- N.O.-N.C.
- ECCN Kodu
- EAR99
- Voltage Rated Dc
- 16V
- Terminal Material
- PHOSPHOR BRONZE
- Illumination
- Non-Illuminated
- Actuator Orientation
- Top Actuated
- Insulation Resistance
- 100000000Ohm
- Throw Configuration
- SPST
- Insulation Materials
- THERMOPLASTIC
- Montaj Tipi
- Surface Mount
- Kurşunsuz Kodu
- yes
- Outline
- 5.00mm x 5.00mm
- Circuit
- SPST-NO
- Depth
- 6.2mm
- Terminal
- Gull Wing
- Dielectric Withstanding Voltage
- 250VAC V
- Orientation
- Straight
- Additional Feature
- CONSULT FACTORY
- Actuator Material
- Silicon Rubber
- JESD-609 Kodu
- e4
- Max Voltage Rating Dc
- 16V
- Çalışma Sıcaklığı
- -55°C~125°C
- Max Current Rating
- 100mA
- Parça Durumu
- Active
- Housing Material
- STAINLESS STEEL
- Fabrika Tedarik Süresi
- 8 Weeks
- Seri
- 7914
- Contact Materials
- Gold
- RoHS Durumu
- ROHS3 Compliant
- HTS Kodu
- 8536.50.90.40
- Terminal Stili
- Gull Wing
- Sealing
- WATER PROOF
- Contact Resistance
- 0.1mOhm
- Contact Dc Max Rating R Load
- .1A@16VDC
- Operating Force
- 300gf
- Number Of Switches
- 1
- Actuator Type
- Standard
- Switch Function
- Off-Mom
- Actuator Height Off Pcb Vertical
- 4.19mm
