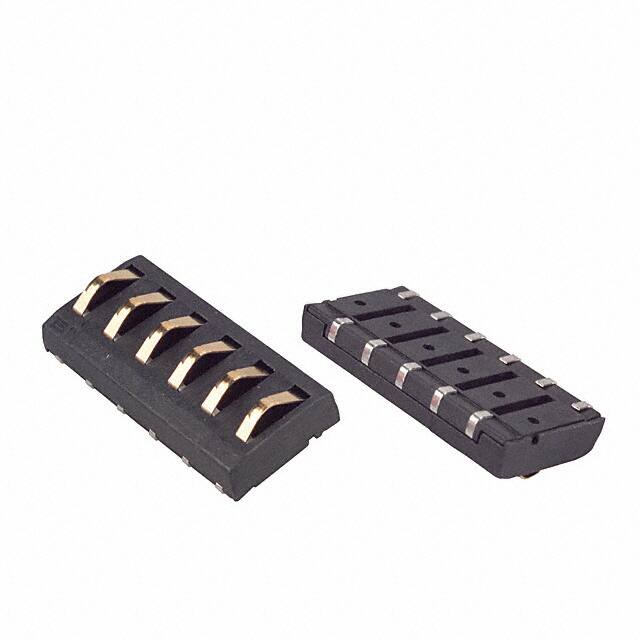

70ADJ-6-ML0

Specifications

Number Of Contacts

6

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min. Çalışma Sıcaklığı

-55°C

JESD-609 Kodu

e3

Sıra Sayısı

1

Pcb Contact Row Spacing

9.525 mm

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Contact Finish Thickness

30.0μin 0.76μm

Mil Conformance

NO

Pcb Contact Pattern

STAGGERED

Additional Feature

ROHS COMPLIANT, LOW PROFILE

Temel Parça No

70ADJ

Contact Finish

Gold

Contact Pattern

RECTANGULAR

Insulation Resistance

500000000Ohm

Montaj Tipi

Surface Mount

Reliability

COMMERCIAL

Seri

70AD

Pitch

0.157 4.00mm

Bodyshell Style

RECEPTACLE

Durability

5000 Cycles

Yayın Yılı

2011

Reference Standard

UL

Iec Conformance

NO

Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Ambalaj

Tube

Housing Material

Thermoplastic

Reach Svhc

No SVHC

Max Voltage Rating Dc

30V

Dielectric Withstanding Voltage

500VAC V

Orientation

Straight

Voltage Rated Dc

30V

Uzunluk

23.7mm

Gender

Male

Material

Copper Alloy

Kurşunsuz

Lead Free
