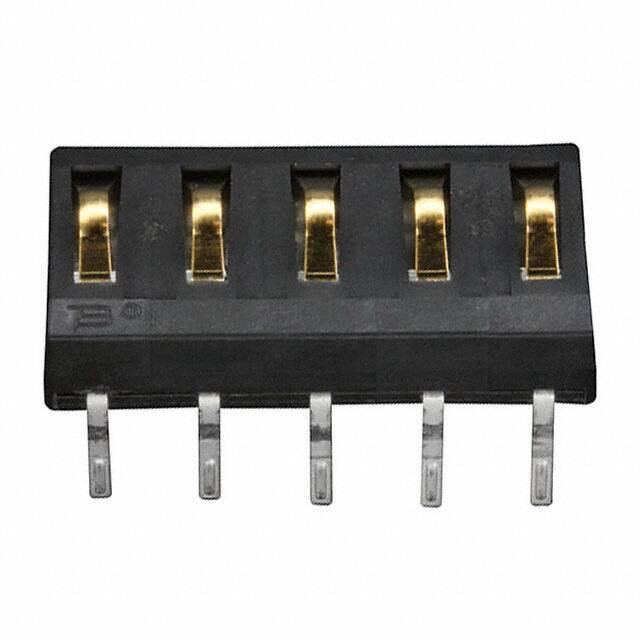

70ADH-5-ML0

Specifications

Depth

11.2mm

Contact Pattern

RECTANGULAR

Connector Type

Compression Contact, Male

Rated Current Signal

3A

Number Of Conductors

ONE

Montaj Tipi

Through Hole

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Din Conformance

NO

Maks. Çalışma Sıcaklığı

125°C

Reliability

COMMERCIAL

Gender

Male

Pcb Contact Pattern

STAGGERED

Temel Parça No

70ADH

Additional Feature

ROHS COMPLIANT & LOW PROFILE

Material

Copper Alloy

Terminal

Solder

Plating Thickness

30μin

Kurşunsuz

Contains Lead

Montaj

Through Hole

Contact Finish

Gold

Renk

Black

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Housing Material

Thermoplastic

Kurşunsuz Kodu

yes

Orientation

Straight

Max Voltage Rating Dc

30V

Number Of Pcb Rows

2

Contact Finish Thickness

30.0μin 0.76μm

Voltage Rated Dc

30V

Mil Conformance

NO

Uzunluk

19.7mm

Seri

70AD

Number Of Contacts

5

Bodyshell Style

RECEPTACLE

Pitch

0.157 4.00mm

Yayın Yılı

2011

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)
