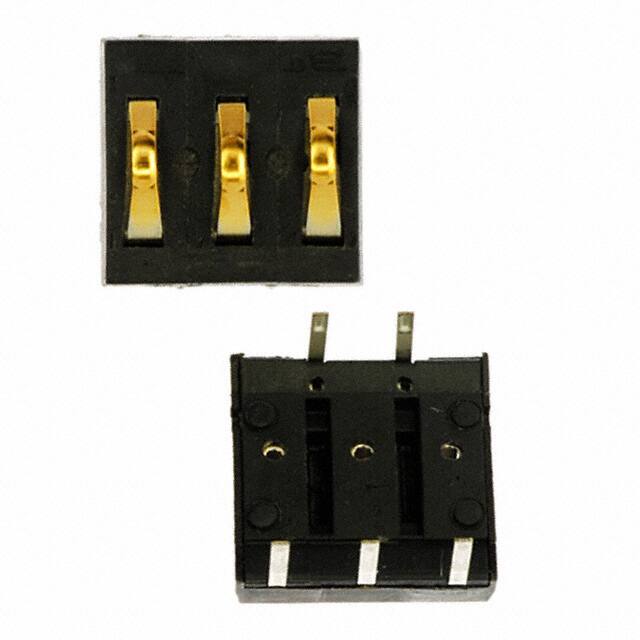

70ADH-3-ML0

Specifications

Montaj Tipi

Through Hole

Reliability

COMMERCIAL

Contact Pattern

RECTANGULAR

Insulation Resistance

500000000Ohm

Contact Finish

Gold

Pcb Contact Pattern

STAGGERED

Temel Parça No

70ADH

Additional Feature

ROHS COMPLIANT, LOW PROFILE

Contact Finish Thickness

30.0μin 0.76μm

Mil Conformance

NO

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Sıra Sayısı

1

Number Of Contacts

3

Min. Çalışma Sıcaklığı

-55°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e3

Number Of Conductors

ONE

Radyasyon Dayanımı

No

Din Conformance

NO

RoHS Durumu

ROHS3 Compliant

Maks. Çalışma Sıcaklığı

125°C

Contact Resistance

25mOhm

Depth

11.2mm

Connector Type

Compression Contact, Male

Rated Current Signal

3A

Kurşunsuz

Lead Free

Terminal

Solder

Montaj

Through Hole

Renk

Black

Material

Copper Alloy

Voltage Rated Dc

30V

Uzunluk

11.7mm

Housing Material

Thermoplastic

Contact Gender

Male

Reach Svhc

Unknown

Orientation

Straight

Dielectric Withstanding Voltage

500VAC V
