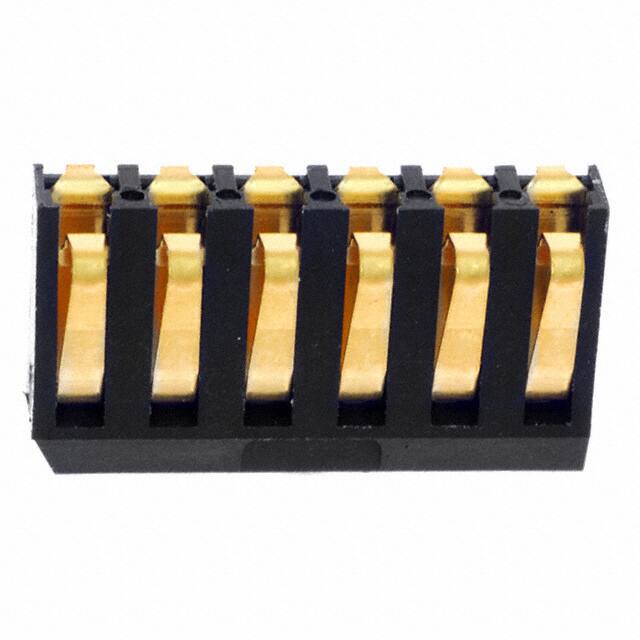

70AAJ-6-M0

Specifications

Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Insulator Color

BLACK

Temel Parça No

70AAJ

Contact Finish

Gold

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Contact Finish Thickness

30.0μin 0.76μm

Mil Conformance

NO

Number Of Contacts

6

JESD-609 Kodu

e4

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min. Çalışma Sıcaklığı

-55°C

Body Breadth

0.334 inch

Sıra Sayısı

1

Depth

8.48mm

Connector Type

Compression Contact, Male

Rated Current Signal

3A

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Din Conformance

NO

Contact Resistance

25mOhm

Maks. Çalışma Sıcaklığı

125°C

Gender

Male

Material

Copper Alloy

Terminal

Solder

Plating Thickness

30μin

Kurşunsuz

Lead Free

Montaj

Surface Mount

Max Current Rating

3A

Housing Material

Thermoplastic

Orientation

Straight

Dielectric Withstanding Voltage

500VAC V

Reach Svhc

No SVHC

Nominal Gerilim

60V
