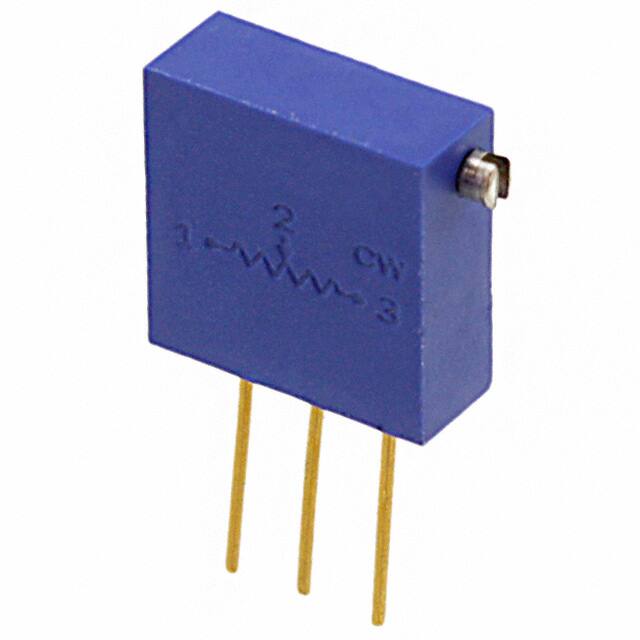

3290H-1-203M

Specifications

Boyut / Ölçü

Rectangular - 0.375 x 0.150 Face x 0.375 H 9.53mmx3.81mmx9.53mm

Montaj Tipi

Panel Mount, Through Hole

Terminal

Pin

RoHS Durumu

ROHS3 Compliant

Actuator Type

SCREW

Resistive Material

Wirewound

Taper

Linear

Direnç

20kOhm

Yayın Yılı

2005

Montaj

PCB, Panel, Through Hole

Rated Power Dissipation P

1W

Adjustment Type

Side Adjustment

Yükseklik

9.525mm

Actuator Orientation

HORIZONTAL

Ambalaj

Tube

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

9 Weeks

Maks. Çalışma Sıcaklığı

150°C

Parça Durumu

Active

Temperature Coefficient

±50ppm/°C

Rated Temperature

85°C

Temel Parça No

3290H

Number Of Turns

25

Weight

708.738078mg

Ganging Number

1

Min. Çalışma Sıcaklığı

-65°C

Rotation Angle

9000 deg

Tolerans

±5%

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

not_compliant

Terminal Stili

PC Pins

Contact Plating

Gold

Max Power Dissipation

1W

Power Rating

1W

Lead Diameter

0.51 mm

Lead Length

8mm

Kurşunsuz Kodu

yes

Terminal Sayısı

3

Resistor Type

TRIMMER

Seri

Trimpot® 3290 - Sealed
