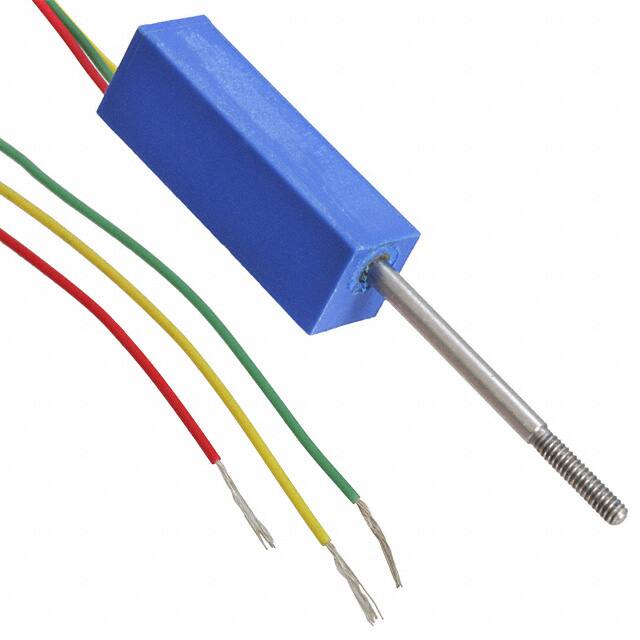

3046L-3-502

Specifications

Taper

Linear

Ganging Number

1

Terminal Stili

Wire Leads

Rated Power Dissipation P

0.125W

Actuator Type

Round Shaft

Depth

5.69mm

HTS Kodu

8533.40.80.70

Construction

Sealed

Terminal Sayısı

3

Composition

Potentiometer

Kılıf / Paket

Module, Wire Leads, Threaded

RoHS Durumu

ROHS3 Compliant

Yükseklik

6.58mm

Number Of Turns

1

Yayın Yılı

2004

Ambalaj

Bulk

Uzunluk

40.41mm

Terminal

Wire Leads

Resistance Tolerance

±20%

Military Standard

Not

ECCN Kodu

EAR99

Linear Range

0 ~ 8.89mm (0 ~ 0.35)

Parça Durumu

Active

Tolerans

20%

Genişlik

5.69mm

Çalışma Sıcaklığı

-55°C~125°C

Temel Parça No

3046L

For Measuring

Linear Position

Montaj

Chassis Mount, Through Hole

Linearity

±5%

Actuator Orientation

HORIZONTAL

Radyasyon Dayanımı

No

Direnç

5kOhm

Terminal Shape

FLEXIBLE FIRE

Size Code

7726

Fabrika Tedarik Süresi

11 Weeks

Power Rating

125mW

Nem Hassasiyeti (MSL)

1 (Unlimited)

Temperature Coefficient

-10001000 ppm/°C

Montaj Tipi

Chassis Mount
