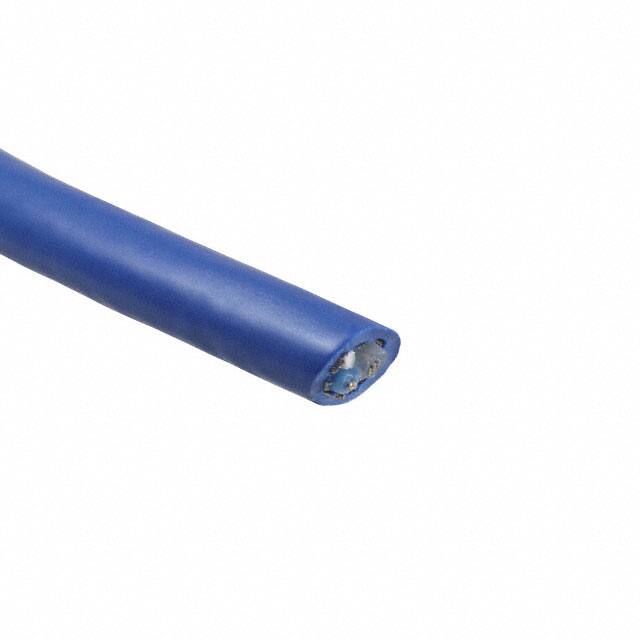

9463 J22100

Specifications

Shielding

YES

Shield Material

Aluminum; Copper, Tinned

Conductor Material

Copper, Tinned

Dielectric Diameter

0.078 (1.98mm)

Construction

STRANDED

Çalışma Sıcaklığı

-40°C~80°C

Dielectric Material

Polyethylene (PE)

Shield Coverage

100%, 55%

Stranding

7X28

Fabrika Tedarik Süresi

10 Weeks

Uzunluk

100.0' 30.48m

Insulation Materials

PE

Wire And Cable Name

COMMUNICATION CABLE

Conductor Strand

7 Strands / 33 AWG

Connector Support Type

WIRE AND CABLE

Yayın Yılı

2009

Empedans

78Ohm

Rated Voltage

300V

Onay Kuruluşu

CE; CEC; CUL; NEC; UL

Cable Types

Twinaxial - Plenum

Vop Velocity Of Propagation

66

Shield Type

Foil, Braid

Jacket Insulation Diameter

0.238 (6.05mm)

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Seri

Blue Hose®

Parça Durumu

Active

Wire Gauge

20 AWG

Direnç

0.031Ohm

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

2

Jacket Color

Blue
