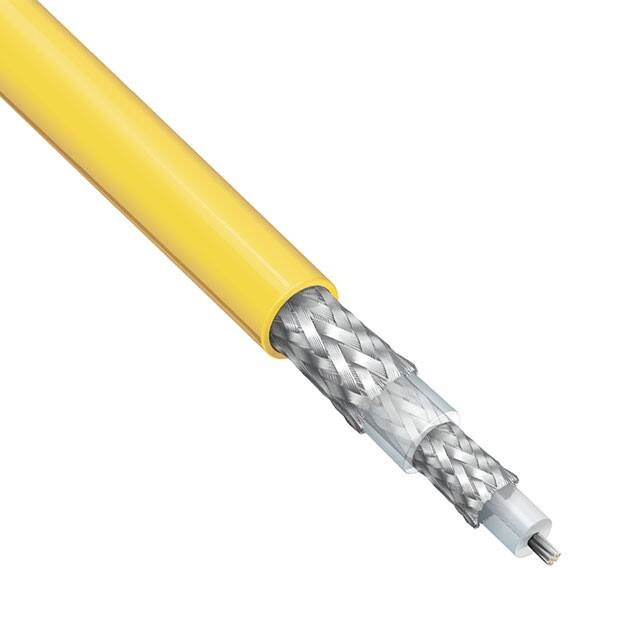

9222 004100

Specifications

Wire Gauge

20 AWG

Number Of Conductors

1

RoHS Durumu

ROHS3 Compliant

Empedans

50Ohm

Shield Type

Braid

Rated Voltage

1400V

Conductor Material

Copper, Tinned

Shield Material

Copper, Tinned

Çalışma Sıcaklığı

-40°C~75°C

Conductor Strand

7 Strands / 28 AWG

Construction

STRANDED

Insulation Materials

PE

Cable Group

RG-58A

Uzunluk

100.0' 30.48m

Wire And Cable Name

COMMUNICATION CABLE

Parça Durumu

Active

Jacket Insulation Diameter

0.241 (6.12mm)

Fabrika Tedarik Süresi

2 Weeks

Connector Support Type

WIRE AND CABLE

Dielectric Diameter

0.120 (3.05mm)

Vop Velocity Of Propagation

66

Cable Types

Coaxial

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Shielding

YES

Dielectric Material

Polyethylene (PE)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Stranding

7X28

Yayın Yılı

2005

Jacket Color

Yellow

Shield Coverage

95%
